3000W Remote Controlled Indoor/outdoor Infrared Heater With Free-standing Installation Overheat Protection Function


● The linear range of far-infrared light heating can reach 5-6 meters.

● Heater with built-in carbon crystal fibers.


E-mail: linda@nussun.com  sales@nussun.com




3000W Remote Controlled Indoor/outdoor Infrared Heater With Free-standing Installation Overheat Protection Function


Specific parameters
Product model9304A
Product size790 * 220 (with casters 280) * 970mm
Net weight 21kg ± 0.1kg
ColourGrey plastic+white sheet metal
Heating motor speed900RPM ± 10%

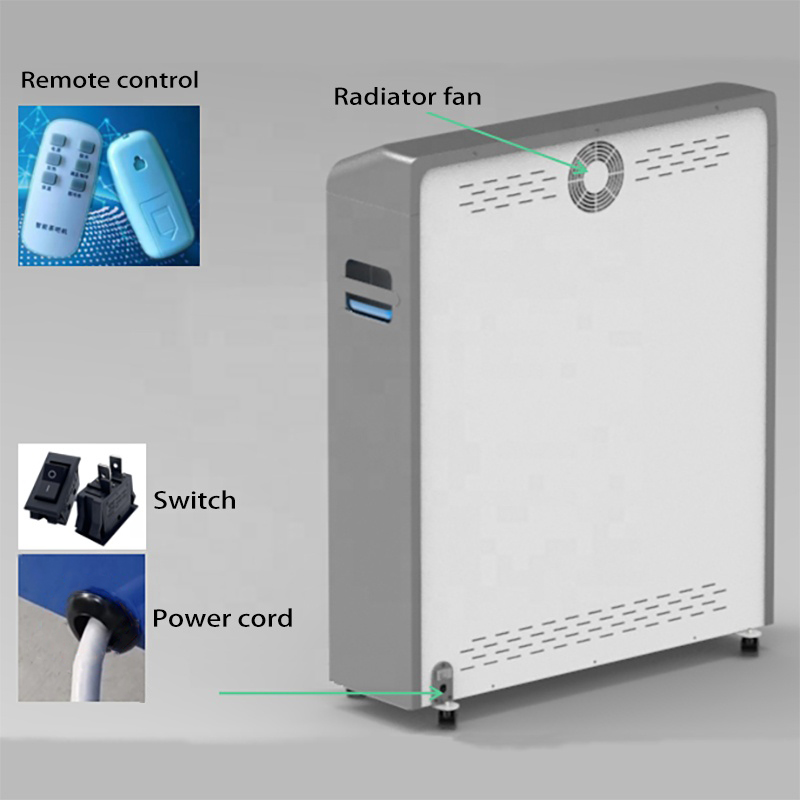

Radiator fan12038 DC Fan 1500RPM ± 10%
Power1st gear 750W, 2nd gear 1500W, 3rd gear 2250W, 4th gear 3000W ± 10%
Fan noise≤35dB ± 10%
Rated voltageInput: 220V 60Hz
Power cordBlack, line length 1.6M ± 0.1M
MaterialABS+sheet metal
Protective devices1. Anti tipping switch; 2. Temperature protection switch; 3. Overcurrent protection switch; 4. Human body proximity protection
Function
SwitchAfter connecting to the power supply and hearing a beep, the self-test is completed. The power indicator light flashes and is in standby mode. Except for the power button, which is effective, other buttons do not work; When the power button is pressed, it defaults to F1 wind speed, with no timing.
4 gear heating levelThe default setting for startup is 1st gear, with the upper left corner heating plate turned on. Press 2nd gear to open the top 2 heating plates. Press 3rd gear to open the top 2 heating plates and the lower left corner heating plates. Press 4th gear to open all 4 heating plates.
Soaking fanTurning on the soaking fan can make the heating more even, but there is a fan sound. If you don't turn on the soaking fan, the heat will be more concentrated.
TimerTouch control, setting the time cycle between 60, 120, 180, 240, 300, 360, 420, 480, 540, 600 minutes.
Child lockPress and hold the control button for 3 seconds to hear a beep to enter, and the same goes for releasing it. If you accidentally touch any key after child lock, you will hear 3 beeps to remind you.
Automatic modeAutomatically adjust the heating level to 1st / 2nd / 3rd / 4th gear based on the current indoor temperature.

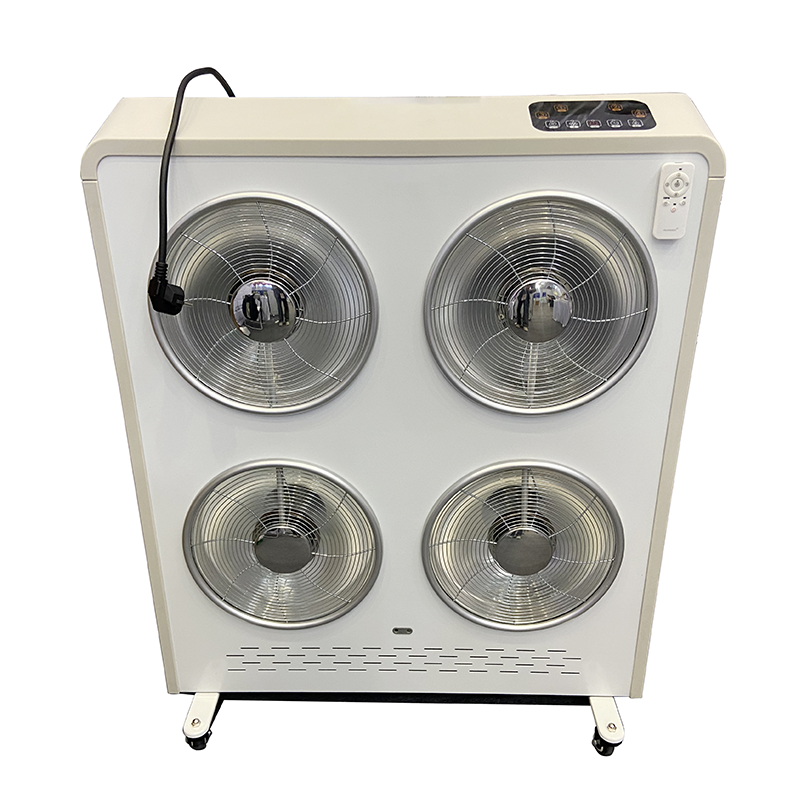

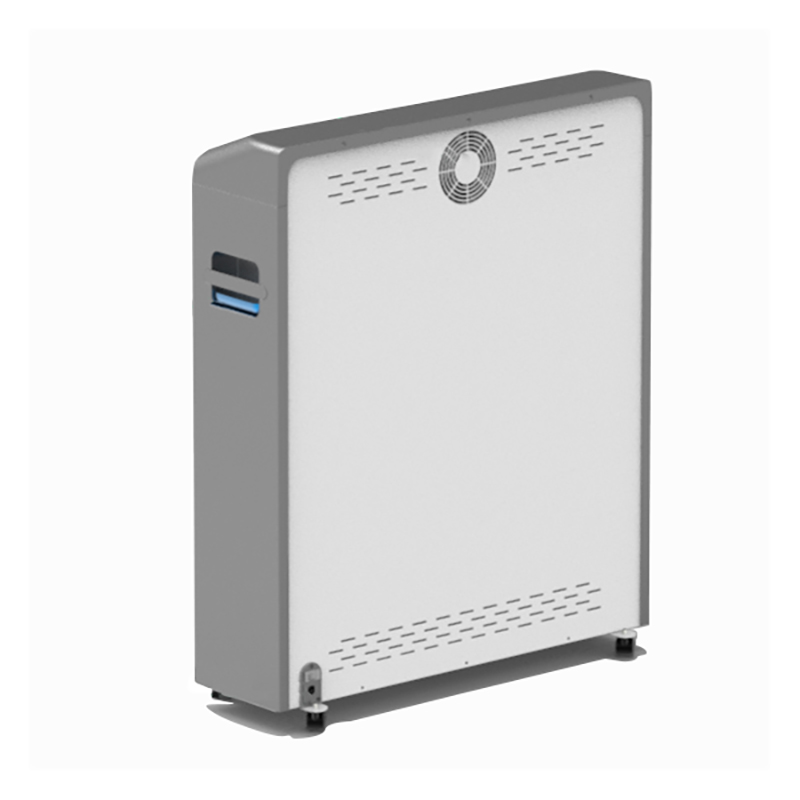

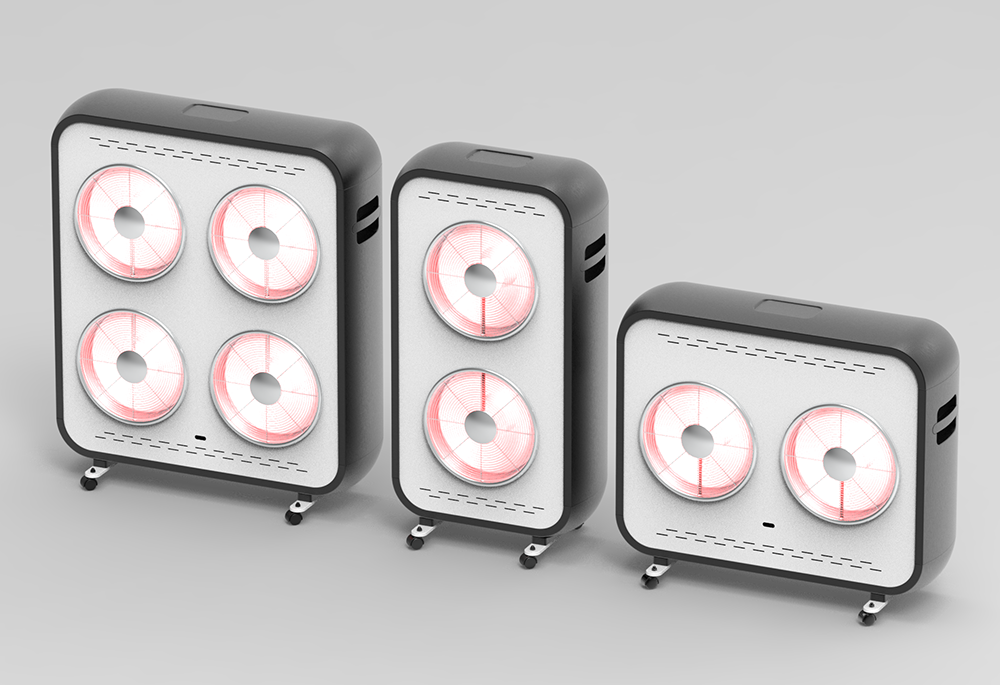

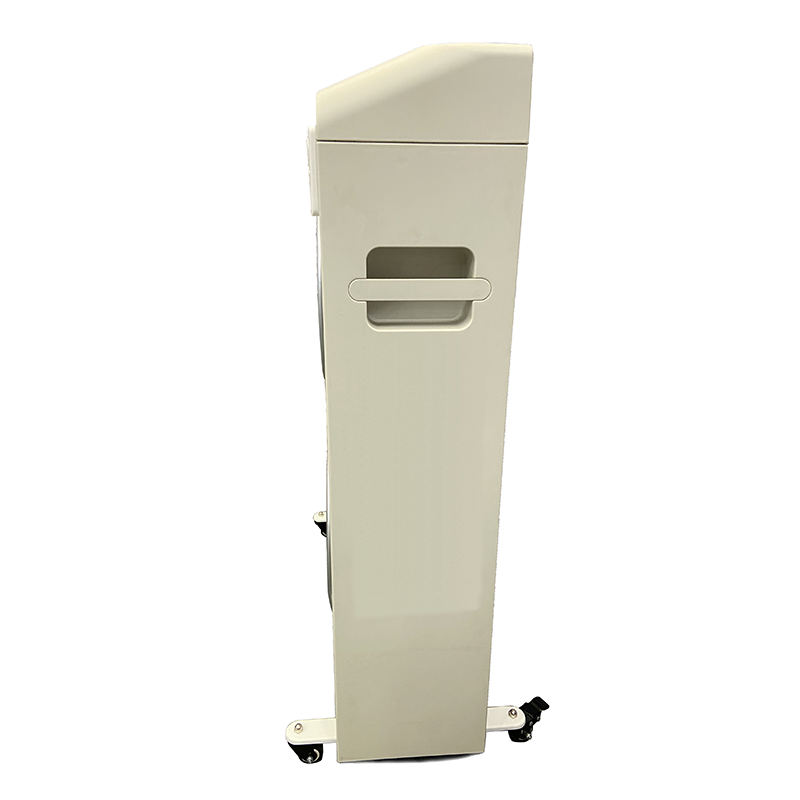

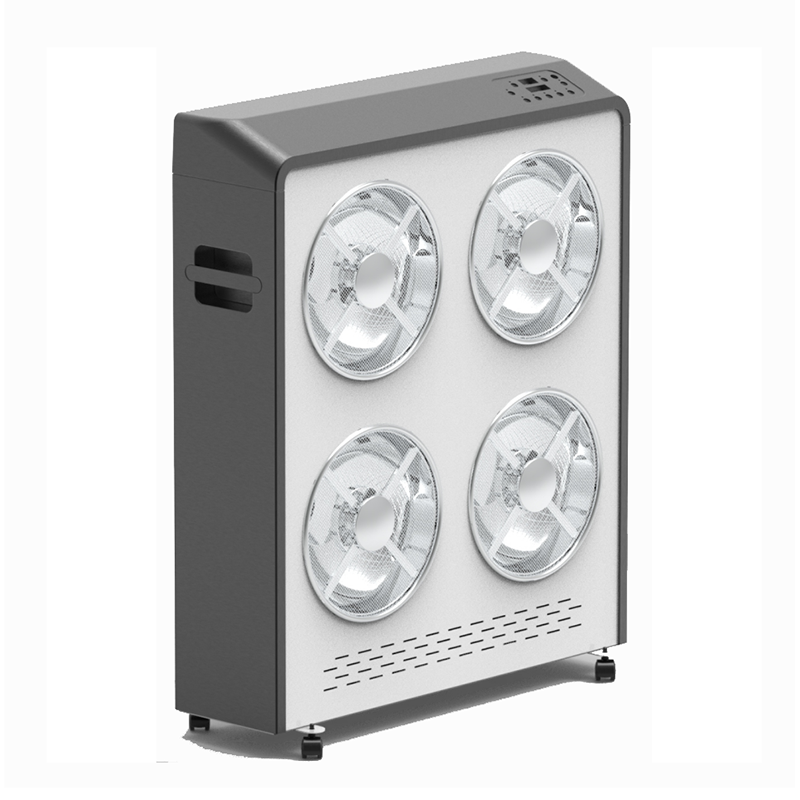

Product Photos
