4 In 1 Heating Air Office Household Indoor Free Standing Heater Remote Control Large Heating Area Electric Heater


● The linear range of far-infrared light heating can reach 5-6 meters.

● Heater with built-in carbon crystal fibers.


E-mail: linda@nussun.com  sales@nussun.com



4 In 1 Heating Air Office Household Indoor Free Standing Heater Remote Control Large Heating Area Electric Heater


Specific Parameters


Product model

9304B

Product size

825 * 220 (with casters 280) * 980mm

Net weight

21kg ± 0.1kg

Colour

Grey plastic+white sheet metal

Heating motor speed

900RPM ± 10%

Radiator fan

12038 DC Fan 1500RPM ± 10%

Power

1st gear 750W, 2nd gear 1500W, 3rd gear 2250W, 4th gear 3000W ± 10%

Fan noise level

≤ 35dB ± 10%

Rated voltage

Input: 220V 60Hz

Power cord

Black, line length 1.6M ± 0.1M

Material

ABS+sheet metal

Protective devices

1. Anti tipping switch; 2. Temperature protection switch; 3. Overcurrent protection switch; 4. Human body proximity protection

Function


Switch

After connecting to the power supply and hearing a beep, the self-test is completed. The power indicator light flashes and is in standby mode. Except for the power button, which is effective, other buttons do not work; When the power button is pressed, it defaults to F1 wind speed, with no timing.

4 gear heating level

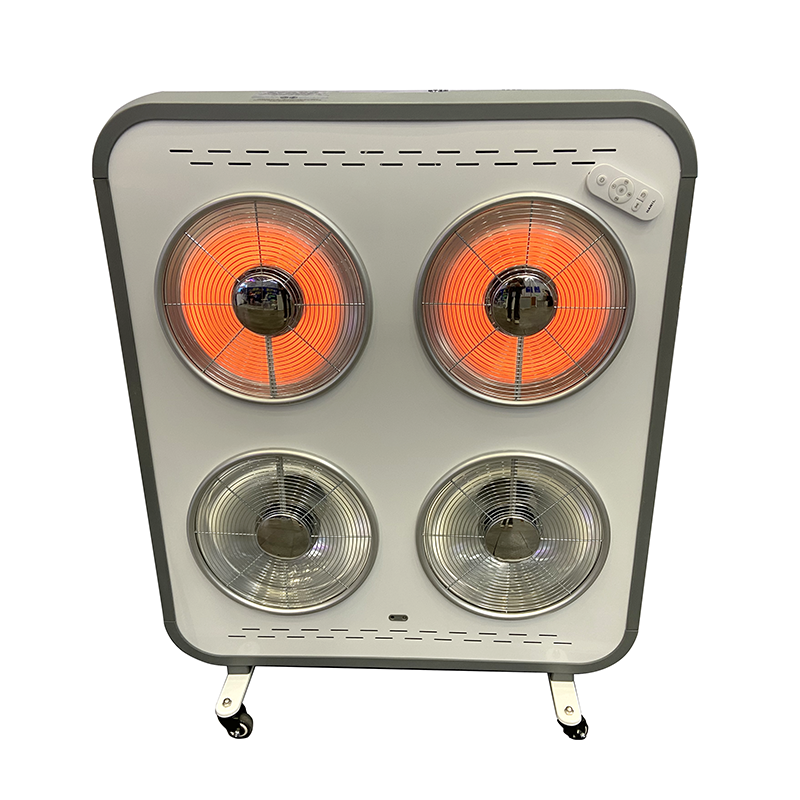

The default setting for startup is 1st gear, with the upper left corner heating plate turned on. Press 2nd gear to open the top 2 heating plates. Press 3rd gear to open the top 2 heating plates and the lower left corner heating plates. Press 4th gear to open all 4 heating plates.

Soaking fan

Turning on the soaking fan can make the heating more even, but there is a fan sound. If you don't turn on the soaking fan, the heat will be more concentrated.

Timer

Touch control, setting the time cycle between 60, 120, 180, 240, 300, 360, 420, 480, 540, 600 minutes.

Child lock (Safety lock)

Press and hold the control button for 3 seconds to hear a beep to enter, and the same goes for releasing it. If you accidentally touch any key after child lock, you will hear 3 beeps to remind you.

Automatic mode

Automatically adjust the heating level to 1st / 2nd / 3rd / 4th gear based on the current indoor temperature.



Product Photos
