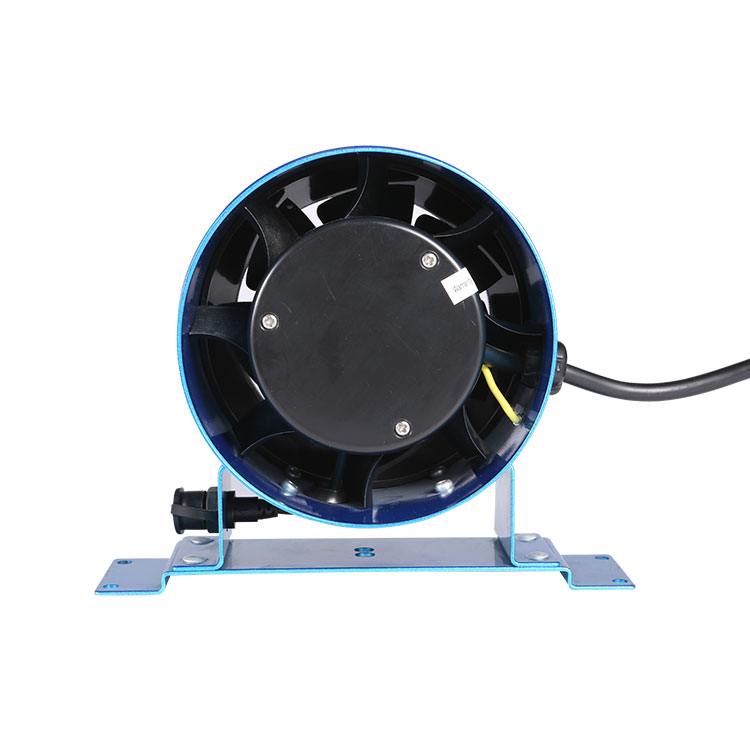

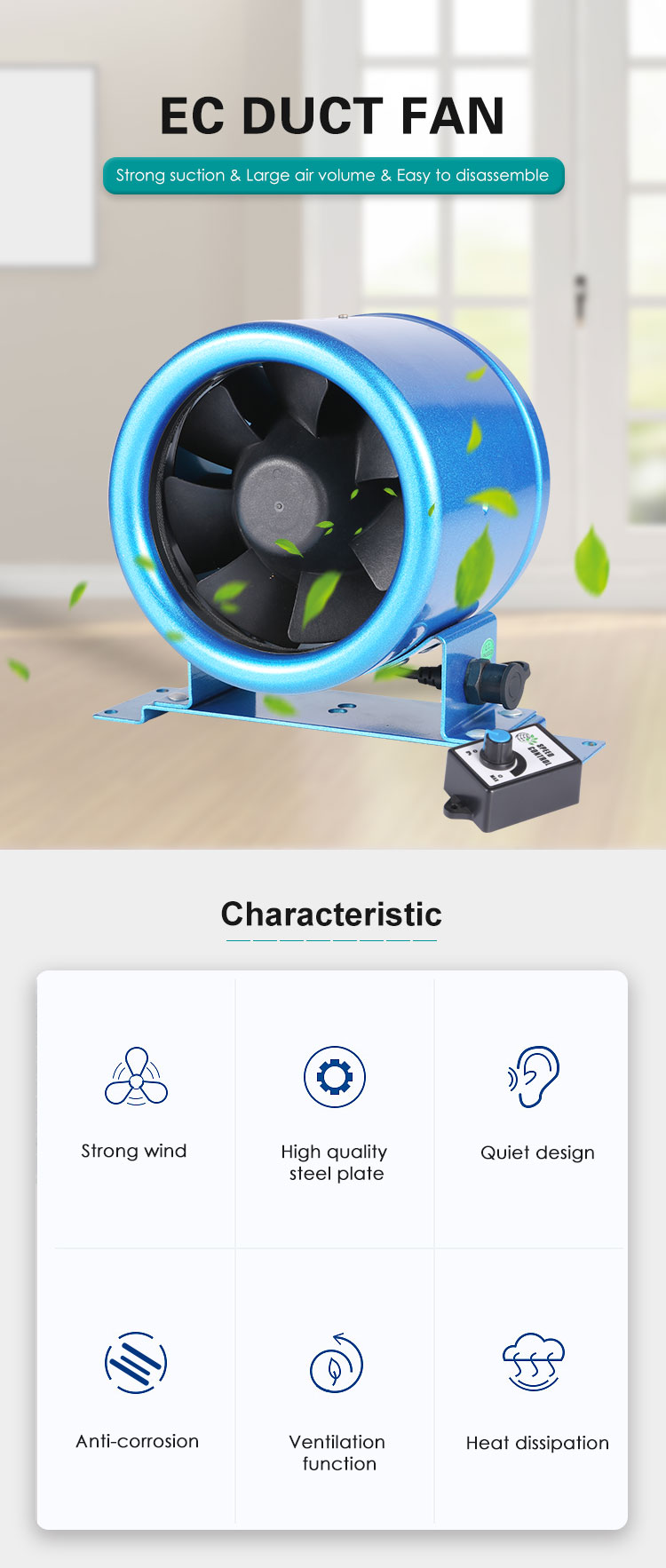

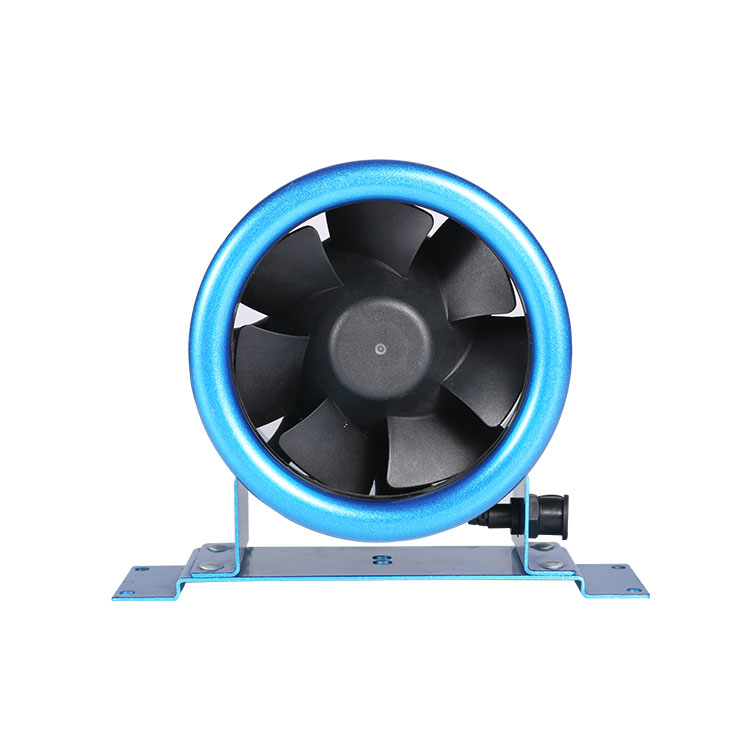

5 Inch EC Motor Inline Duct Fan 110/240V Multi-Speed Ventilation Fan

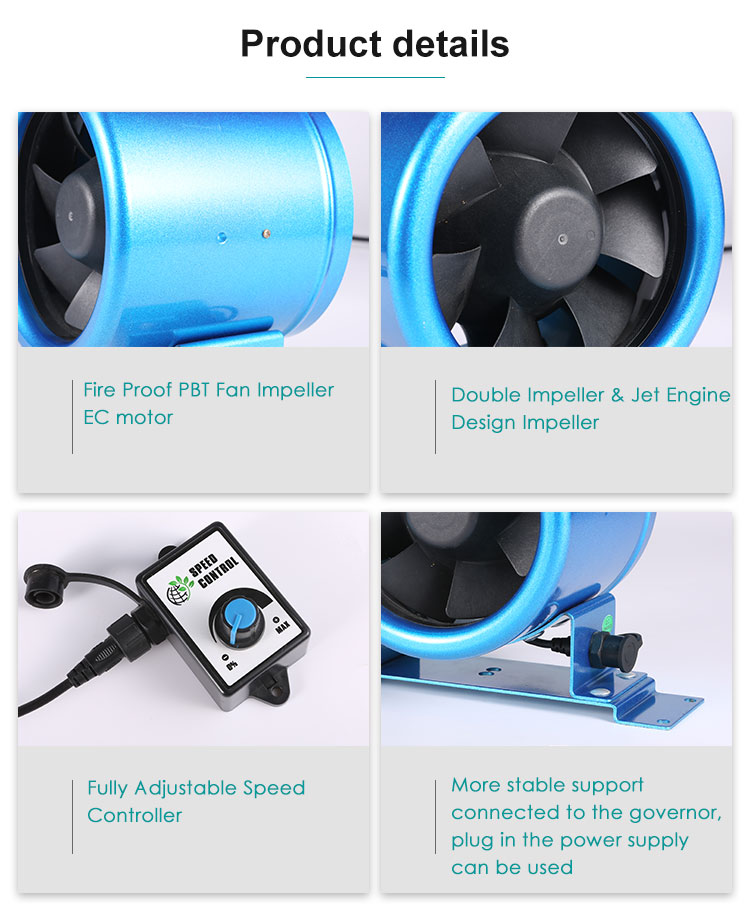

 FAN FEATURES

  • Most compact design with metal housing

  • Fire Proof PBT Fan Impeller

  • Multi-phase EC(Electronically Commutated)Fan Motor

  • Exceptional Air Volume Output

  • Double Impeller & Jet Engine Design Impeller

  • Half the Power Consumption of Other Fans

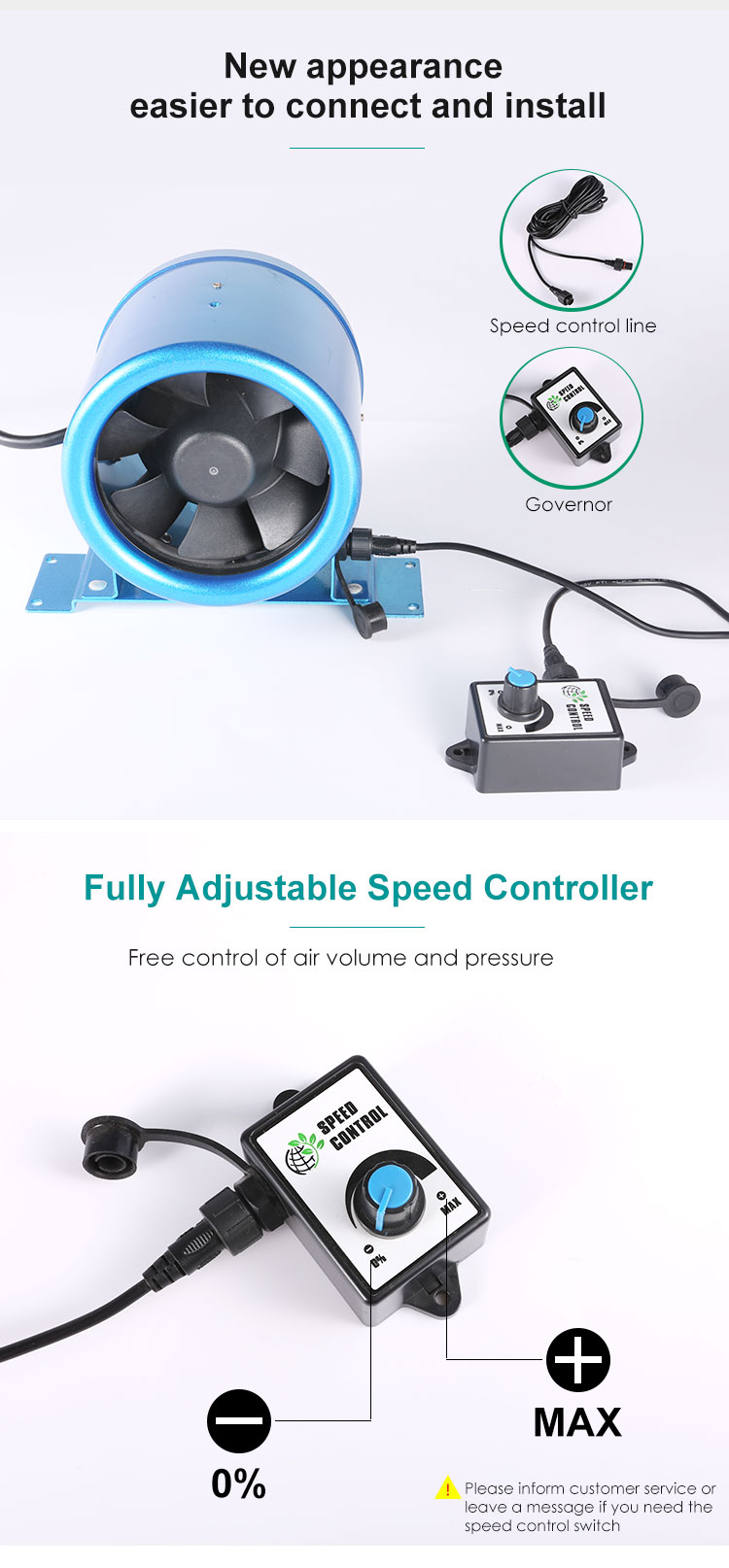

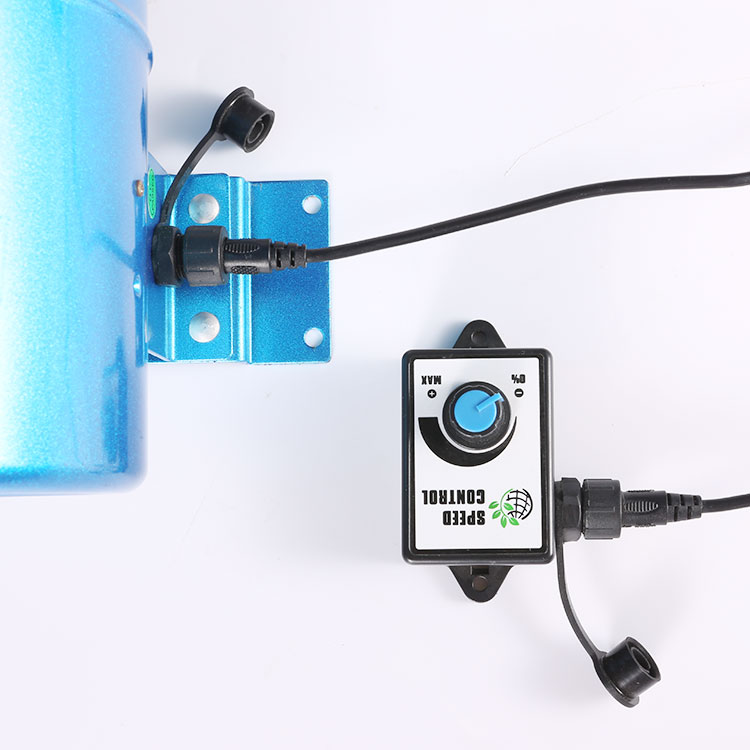

  • Fully Adjustable Speed Controller

  • Heavy Duty Ball Bearing

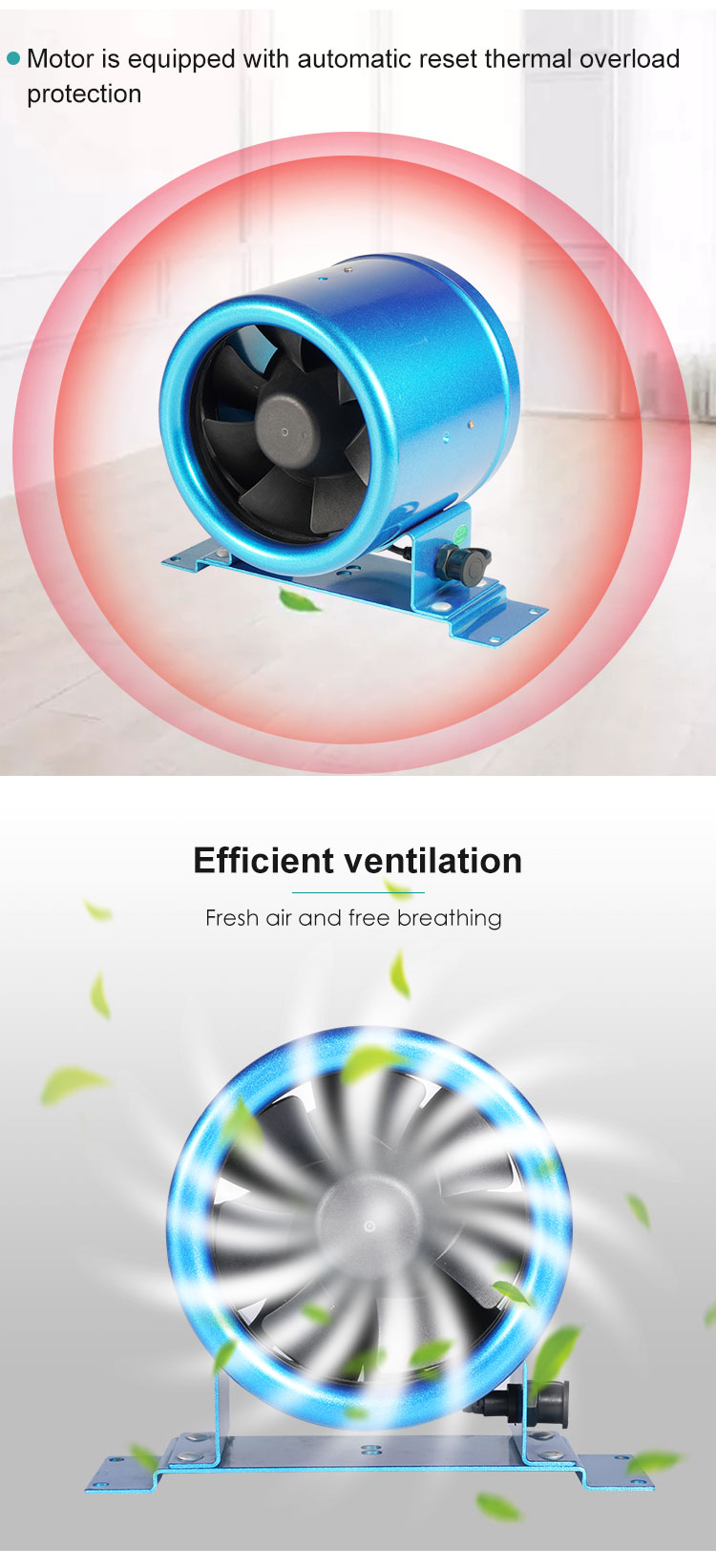

  • Over Current Load ProtectionAuto-Restart

  • Working Temperature:-10℃-60

  • Insulation Type:UL-Class A(105℃)

  • IP Rating:IPX4

  • Fire Proof Grade:UL94V

E-mail: linda@nussun.com    sales@nussun.com

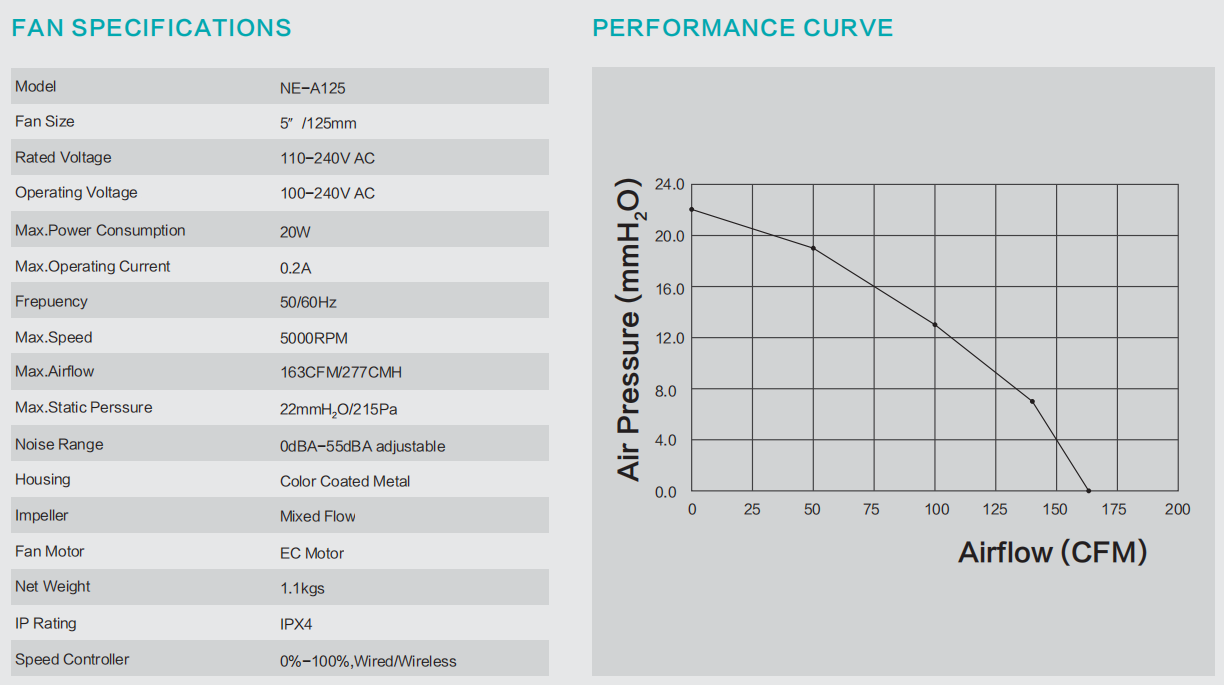

Quick Details

Model Number:NE-A125Brand Name:NussunBlade Material: Fire Proof PBT Fan Impeller
Place of Origin: Guangdong, China (Mainland)Mounting:Duct Fan

Max.Operating Current:

0.2A

Voltage:110-240VACPower: 20WOperating Voltage:100-240VAC
Max Speed: 5000RPMCertification:CCC, CEAfter-sales Service :Engineers available to service
Color:White and any other colorMotor:EC motorImpeller:
Mixed Flow impeller

Max.Static Perssure:

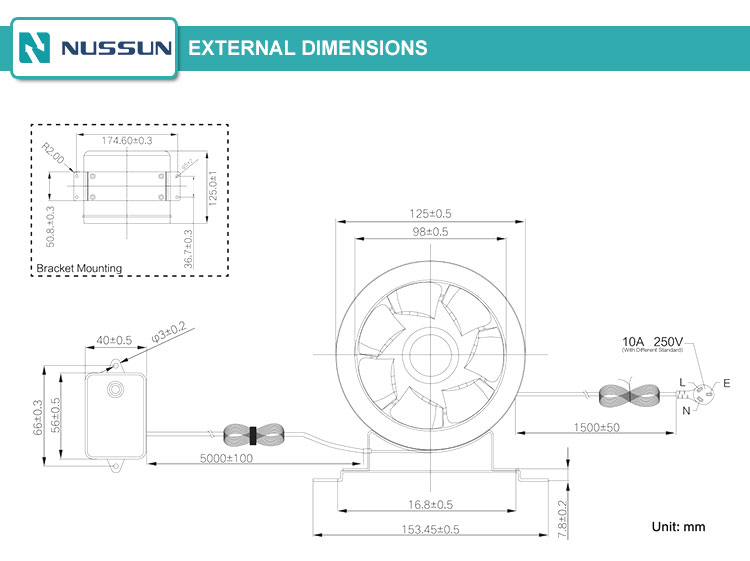

22mmH2O/215PaBall Bearing: NSK ball bearingDimension:Packing: 215*210*210mm
Noise Range:0dBA-55dBA adjustableCasing: Color coated metalSpeed controller:0%-100%,Wired/Wireless, not included
Electric Current:AC

IP Rating:

IPX4

Fan Size:5″/125mm
Max.Airflow:

163CFM/277CMH

Frepuency:50/60HzNet Weight:1.1kg
Product name:5 Inch EC Motor Inline Duct Fan 110/240V Multi-Speed Ventilation Fan

Packaging & Delivery

  • Packaging Details: Cartons(1pic/ctn) 215*210*210mm in seaworthy cartons or customized.

  • Delivery Time 20 days




Product Description

+
