HL3-2A/HLF-6 Series Industrial Fan
HL3-2A/HLF-6 mixed flow fan is a new kind of fan between an axial fan and a centrifugal fan .The product is featured by new design, compact structure, small size, light weight, high efficiency, high pressure, low noise, easy installation etc. It can take place of the low and middle pressure centrifugalfans under 200Pa, and is widely used to transport air and remove dustinindustrial, civil buildings.
E-mail: linda@nussun.com sales@nussun.com
Application
For mining industry, hotels, museums, sports venues for air pipiline, the air supply and exhaust.
HL3-2A/HLF-6 mixed flow fan is a new kind of fan between an axial fan and a centrifugal fan .The product is featured by new design, compact structure, small size, light weight, high efficiency, high pressure, low noise, easy installation etc. It can take place of the low and middle pressure centrifugalfans under 200Pa, and is widely used to transport air and remove dust in industrial, civil buildings.
Performance

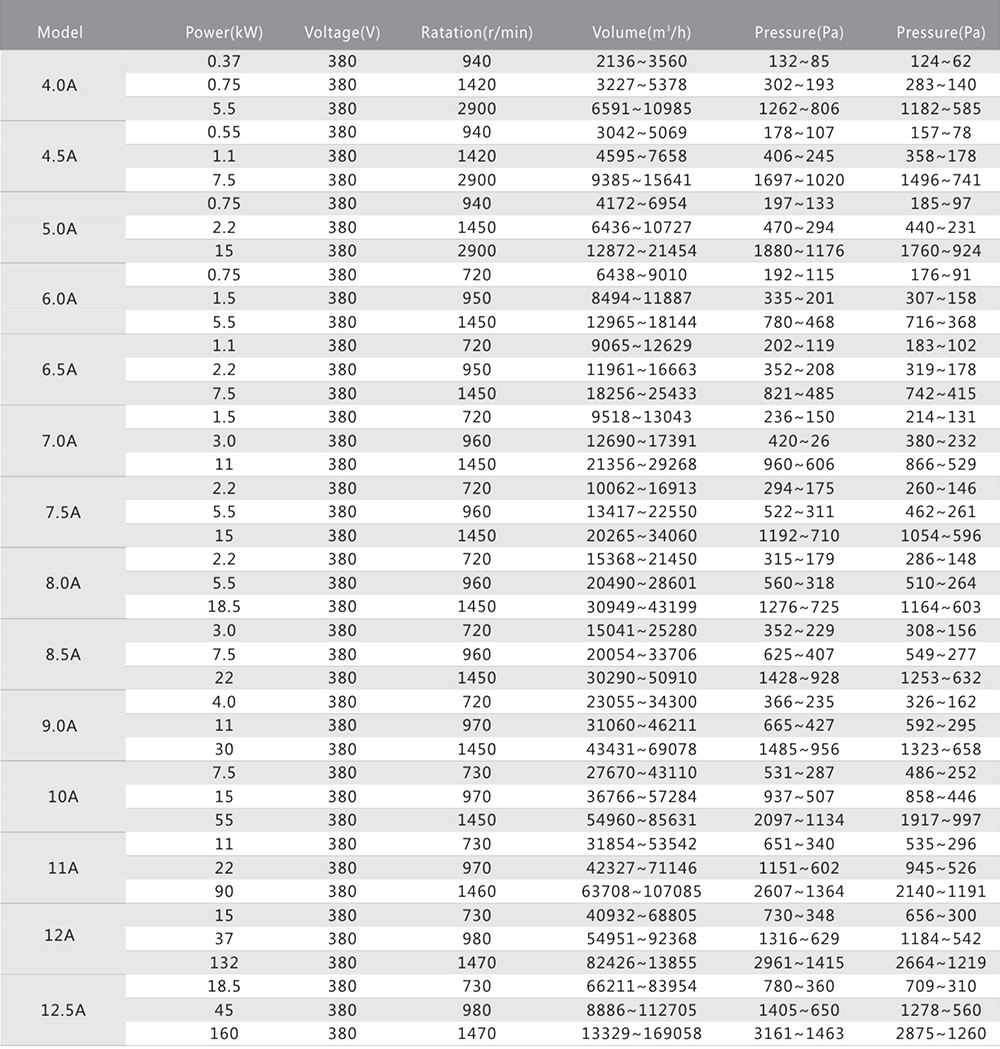

Technical parameter
Note:
The above are representative specifications, can be designed according to user requirements.
The above performance parameters are the motor rated speed test data, for reference only,
we can change the motor speed to meet the actual needs of users, can also provide customized
products to users.
