You are here: Home > Brands Products > Factory Wholesale Electric Infrared Panel Heater With Programmable Digital Timer 6 Meter Heating Area Floor Standing
Factory Wholesale Electric Infrared Panel Heater With Programmable Digital Timer 6 Meter Heating Area Floor Standing
● The linear range of far-infrared light heating can reach 5-6 meters.
● Heater with built-in carbon crystal fibers.
● Floor standing with castors
E-mail: linda@nussun.com sales@nussun.com
Factory Wholesale Electric Infrared Panel Heater With Programmable Digital Timer 6 Meter Heating Area Floor Standing
Specific parameters | |
Product model | 9304A |
Product size | 790 * 220 (with casters 280) * 970mm |
Net weight | 21kg ± 0.1kg |
Colour | Grey plastic+white sheet metal |
Heating motor speed | 900RPM ± 10% |
Radiator fan | 12038 DC Fan 1500RPM ± 10% |
Power | 1st gear 750W, 2nd gear 1500W, 3rd gear 2250W, 4th gear 3000W ± 10% |
Fan noise | ≤35dB ± 10% |
Rated voltage | Input: 220V 60Hz |
Power cord | Black, line length 1.6M ± 0.1M |
Material | ABS+sheet metal |
Protective devices | 1. Anti tipping switch; 2. Temperature protection switch; 3. Overcurrent protection switch; 4. Human body proximity protection |
Function | |
Switch | After connecting to the power supply and hearing a beep, the self-test is completed. The power indicator light flashes and is in standby mode. Except for the power button, which is effective, other buttons do not work; When the power button is pressed, it defaults to F1 wind speed, with no timing. |
4 gear heating level | The default setting for startup is 1st gear, with the upper left corner heating plate turned on. Press 2nd gear to open the top 2 heating plates. Press 3rd gear to open the top 2 heating plates and the lower left corner heating plates. Press 4th gear to open all 4 heating plates. |
Soaking fan | Turning on the soaking fan can make the heating more even, but there is a fan sound. If you don't turn on the soaking fan, the heat will be more concentrated. |
Timer | Touch control, setting the time cycle between 60, 120, 180, 240, 300, 360, 420, 480, 540, 600 minutes. |
Child lock | Press and hold the control button for 3 seconds to hear a beep to enter, and the same goes for releasing it. If you accidentally touch any key after child lock, you will hear 3 beeps to remind you. |
Automatic mode | Automatically adjust the heating level to 1st / 2nd / 3rd / 4th gear based on the current indoor temperature. |

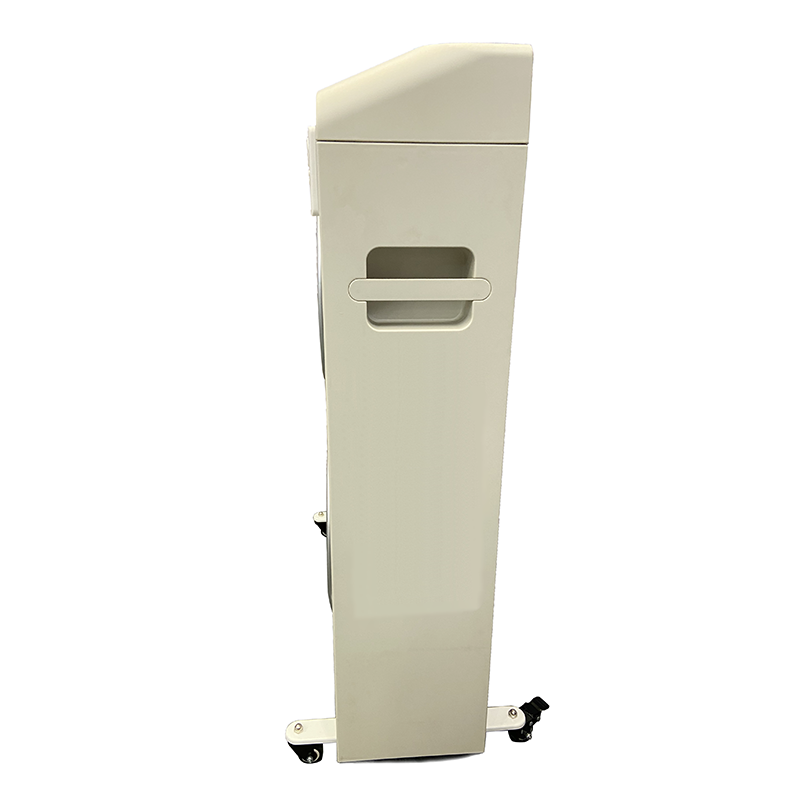

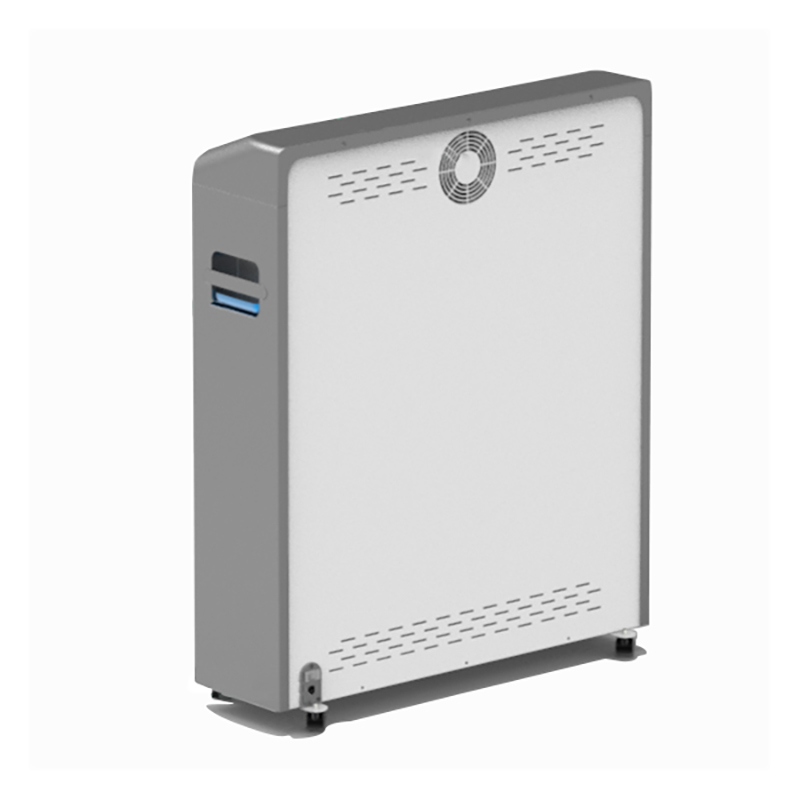

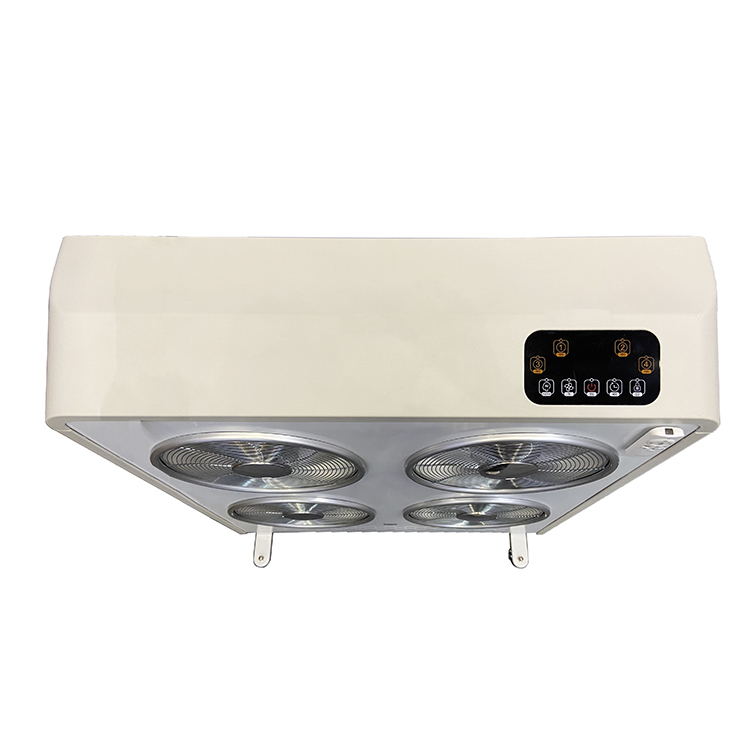

Product Photos
