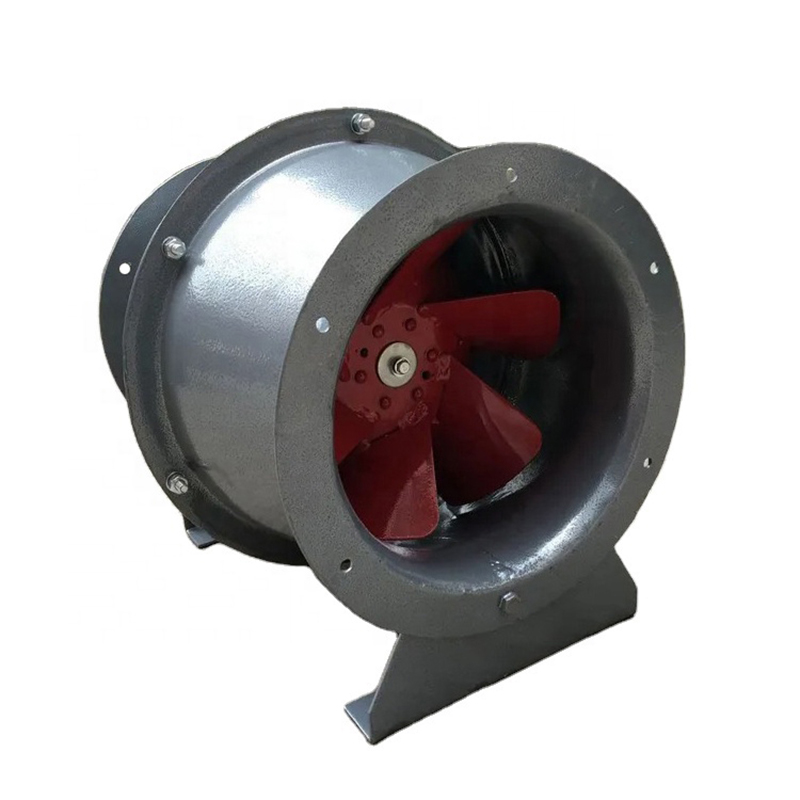

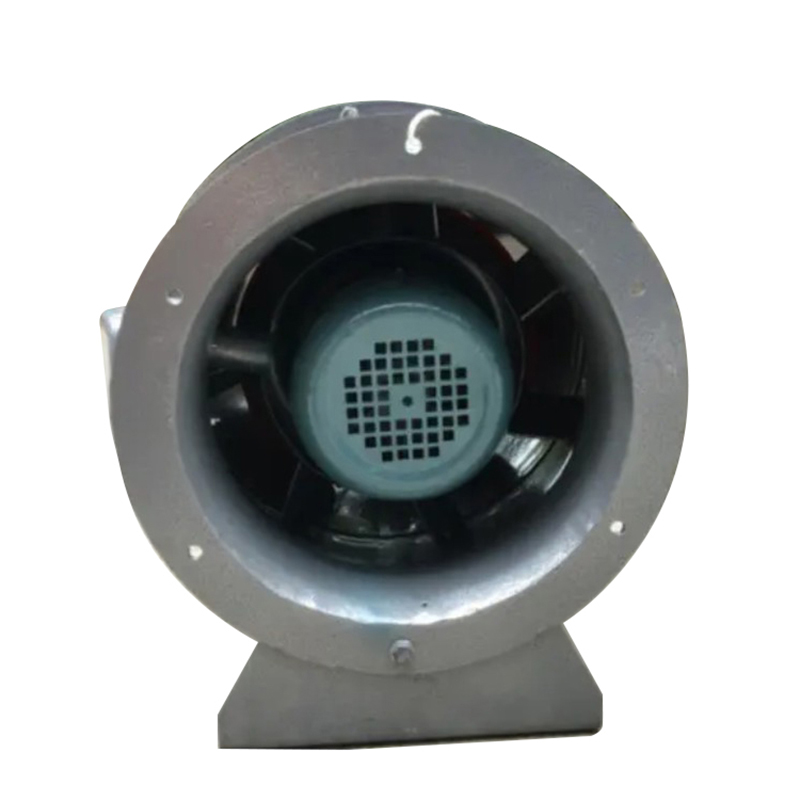

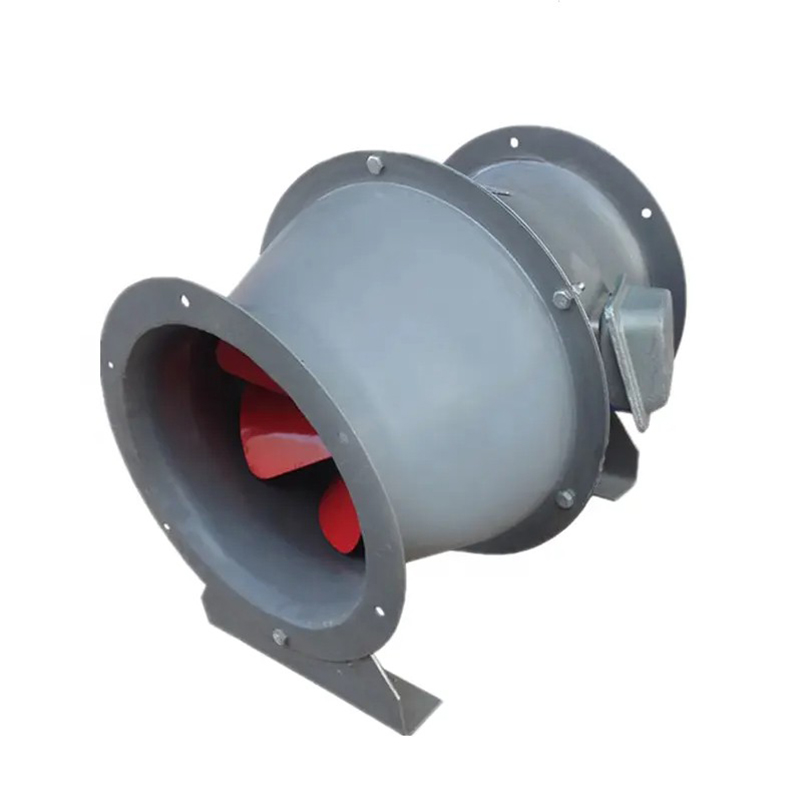

GXF Series Industrial Fan
E-mail: linda@nussun.com sales@nussun.com
Application
For mining industry, hotels, museums, sports venues for air pipiline, the air supply and exhaust.
The product is especially suitable for pipeline installation of a small spaces, in places like the mining industry,
hotels, museums, sports venues for pipiline, the air supply and exhaust, it also used for ventilation in general
buildings and tall buildings with the gas temperature between -20 ºC to 50 ºC and the quantity of dust and soild
impurities ≤100mg/m³.
Performance
Technical parameter
Model | Power (kW) | Ratation (r/min) | Volume (m³/h) | Pressure (Pa) | Staticpressure (Pa) | Noise dB(A) |
3.0F | 0.25 | 1400 | 864~2559 | 179~125 | 148~77 | ≤64 |
3.5S | 0.18 | 910 | 908~2725 | 107~75 | 99~55 | ≤60 |
3.5F | 0.37 | 1400 | 1372~4116 | 243~170 | 234~120 | ≤67 |
4.0S | 0.25 | 910 | 1836~3642 | 151~89 | 142~49 | ≤67 |
4.0F | 0.75 | 1400 | 2825~5603 | 359~211 | 336~118 | ≤78 |
4.5S | 0.37 | 910 | 2383~4506 | 186~141 | 176~102 | ≤68 |
4.5F | 1.1 | 1400 | 3664~6932 | 440~332 | 417~242 | ≤82 |
5.0S | 0.75 | 910 | 3416~7257 | 226~143 | 212~79 | ≤71 |
5.0F | 2.2 | 1420 | 5338~11339 | 552~350 | 518~192 | ≤84 |
6.0S | 1.5 | 960 | 7332~13677 | 332~246 | 300~122 | ≤79 |
6.0F | 5.5 | 1450 | 11075~20660 | 758~561 | 685~277 | ≤90 |
7.0S | 3 | 960 | 9232~18309 | 440~333 | 413~225 | ≤81 |
8.0S | 7.5 | 960 | 19645~32524 | 637~476 | 564~276 | ≤85 |
- Note:
The above are representative specifications, can be designed according to user requirements.
The above performance parameters are the motor rated speed test data, for reference only,
we can change the motor speed to meet the actual needs of users, can also provide customized
products to users.

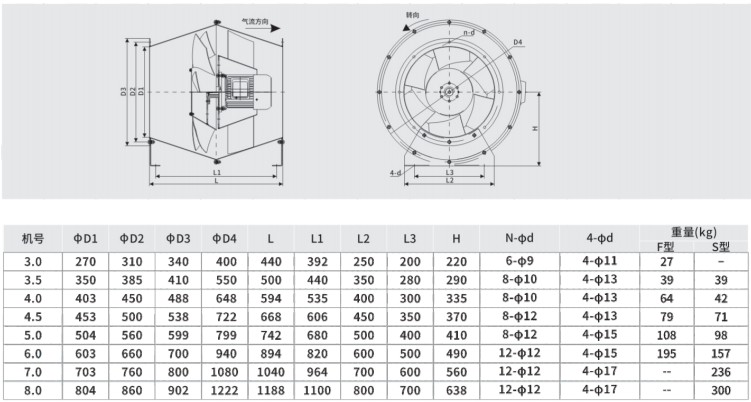

Note:The specific size can be adjusted as per customer's machine assembly.
