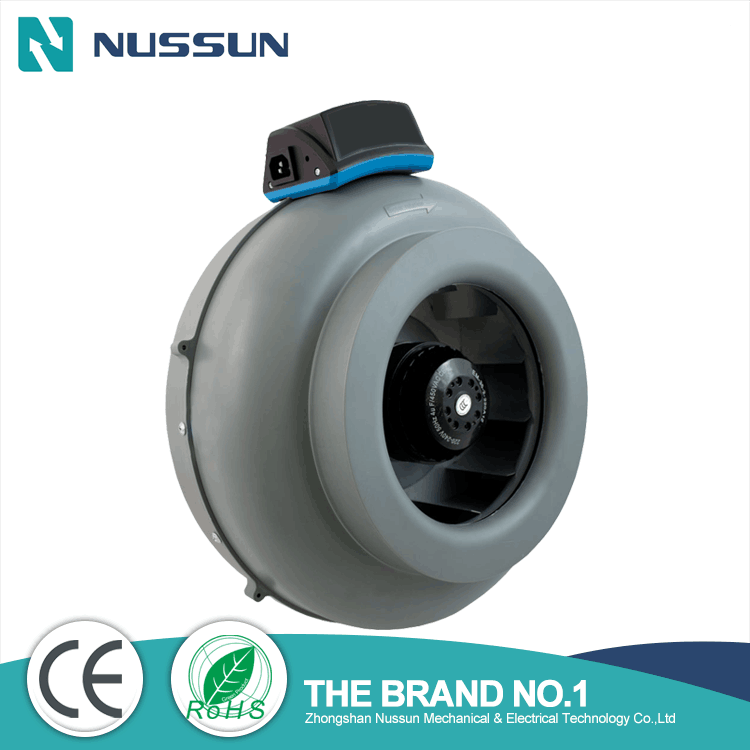

AC Centrifugal inline duct fan (DJT16U-46P)

The inline duct fan feature high pressure air handling performance with low noise and extremely low power usage.This P-Series hydropoincs inline duct fan are ideal for long runs or exhaust applications requiring exacting performance. Use them as super quiet bathroom/spa exhausters to eliminate fogged mirrors and lingering odors. They also work great for exhausting high moisture areas such as hydroponics grow rooms or for subslab radon gas mitigation. Included with the fan is a strip of vibration isolating foam for a better fit and to minimize any vibration. All models come with standard power cord.

Features:

Casing is made of ABS (FR)

Backward-curved centrifugal impeller using PA66 (FR)

ABS (FR) connection box

External rotor motor with low temperature rise

Motor is equipped with automatic reset thermal overload protection

NSK ball bearing, acceptable for continuous operation of 50000h

Operating temperature range -20°C~50°C

Insulation Class F

Enclosure class IP44

Usage:

Circular duct fans are commonly used in ventilation systems for various places to facilitate air movement and circulation. Here are some specific usages and applications:

1. Bathrooms and Toilets: Circular duct fans are often installed to exhaust humid air and odors, improving air quality and reducing moisture buildup which can lead to mold and mildew.

2. Kitchens: In kitchens, these fans help to remove cooking fumes, smoke, and grease particles, thereby maintaining a cleaner environment and reducing the risk of lingering odors.

3. Commercial Spaces: They are used in offices, retail stores, and other commercial settings to enhance ventilation and air circulation, promoting a healthier and more comfortable indoor environment for occupants.

4. Industrial Settings: Circular duct fans play a crucial role in industrial ventilation systems, where they help to exhaust air contaminated with dust, fumes, or chemicals from manufacturing processes.

5. HVAC Systems: They are integrated into heating, ventilation, and air conditioning (HVAC) systems to ensure efficient air distribution throughout buildings and to control indoor air quality.

6. Server Rooms and Data Centers: These fans are essential for maintaining optimal temperature and humidity levels in server rooms and data centers by expelling heat generated by electronic equipment.

7. Greenhouses: Circular duct fans are used in greenhouse ventilation systems to regulate temperature and humidity, ensuring ideal growing conditions for plants.

In summary, circular duct fans are versatile components used in various ventilation applications to enhance air quality, remove contaminants, control temperature and humidity, and maintain overall comfort and safety in indoor environments.

 Performance parameter

Dimension Table (mm)

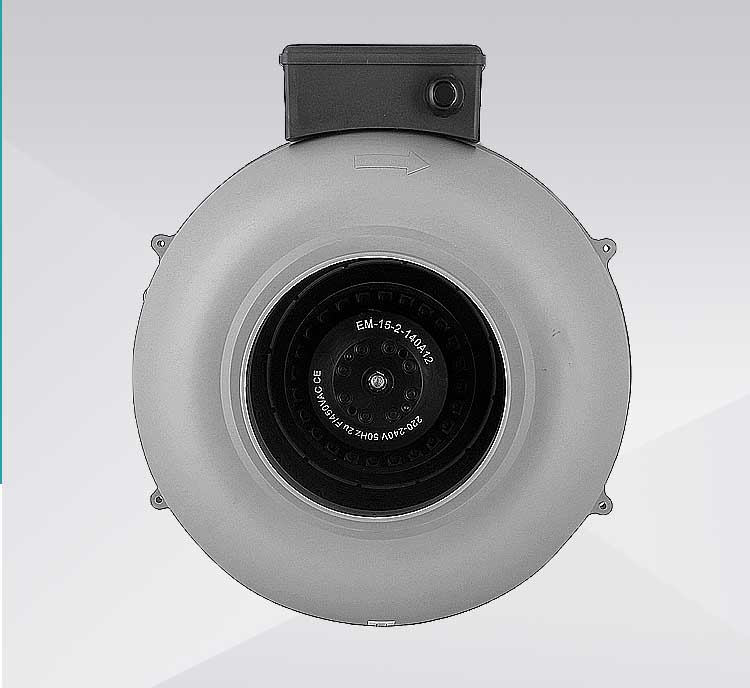

 Feature parts details

Casing use imported ABS(FR) by injection molding

External optimizaton design ABS(FR) connection box

Patent air deflector device, 10% higher efficiency, lower noise

External rotor motor with low energy consumption, long life
