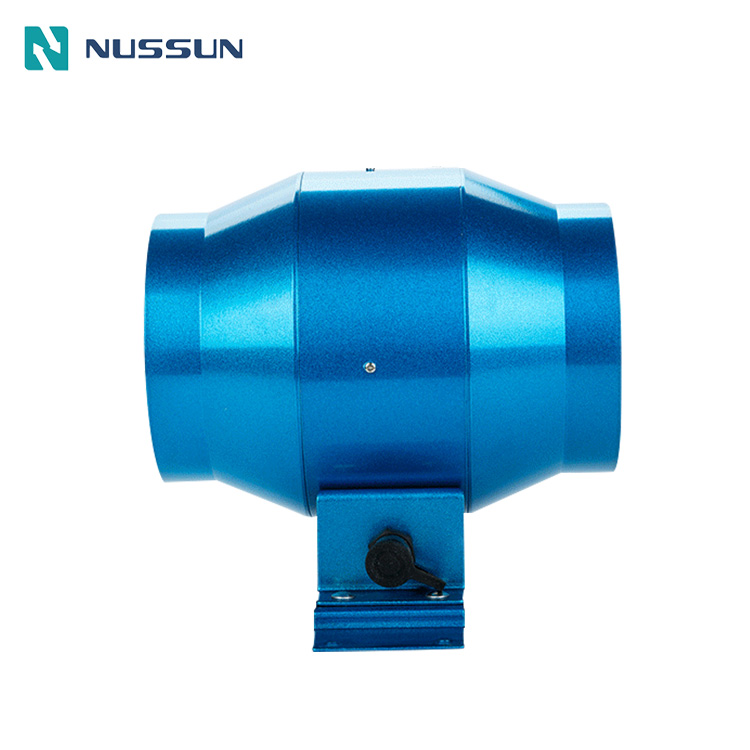

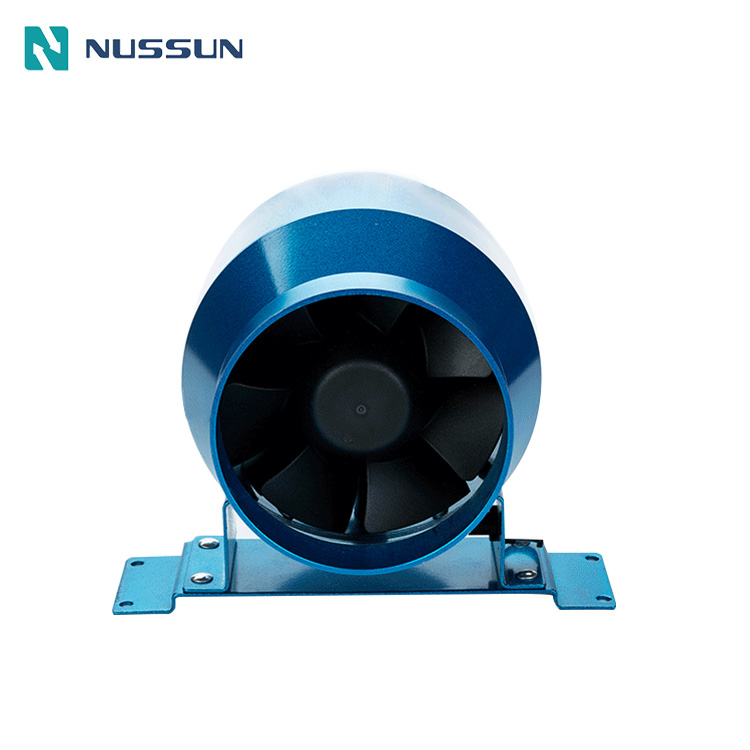

New 4 Inch Intelligent Controller Home Ventilation Exhaust Fan with PWM 0-10V EC Inline Duct Fan
FAN FEATURES
Metal Fan Housing
Fire Proof PBT Fan Impeller
Multi-phase EC(Electronically Commutated)Fan Motor
Exceptional Air Volume Output
Double Impeller & Jet Engine Design Impeller
Half the Power Consumption of Other Fans

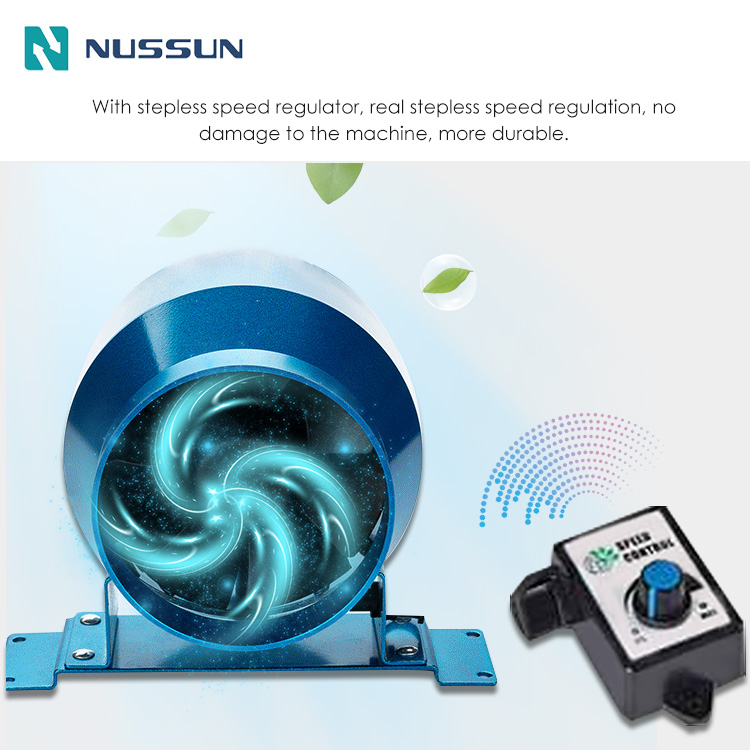

Fully Adjustable Speed Controller
Heavy Duty Ball Bearing
Over Current Load Protection, Auto-Restart
℃Working Temperature:-10℃-60
Insulation Type:UL-Class A(105℃)
IP Rating:IPX4
Fire Proof Grade:UL94V
E-mail: linda@nussun.com sales@nussun.com
Quick Details
| Model Number: | NE-A100 | Brand Name: | Nussun | Blade Material: | Fire Proof PBT Fan Impeller |
| Place of Origin: | Guangdong, China (Mainland) | Mounting: | Duct Fan | Max.Operating Current: | 0.24A |
| Voltage: | 110-240VAC | Power: | 20W | Operating Voltage: | 100-264VAC |
| Max Speed: | 5000RPM | Certification: | CCC, CE | After-sales Service : | Engineers available to service |
| Color: | White and any other color | Motor: | EC motor | Impeller: | Mixed Flow impeller |
Max.Static Perssure: | 34mmH2O/333Pa | Ball Bearing: | NSK ball bearing | Dimension: | Packing: 220*210*200mm |
| Noise Range: | 0dBA-60dBA adjustable | Casing: | Color coated metal | Speed controller: | 0%-100%,Wired/Wireless, not included |
| Electric Current: | AC | IP Rating: | IPX4 | Fan Size: | 4″/100mm |
| Max.Airflow: | 160CFM/275CMH | Frepuency: | 50/60Hz | Net Weight: | 1.1kg |
| Product name: | 4 Inch Intelligent Controller Home Ventilation Exhaust Fan EC Inline Duct Fan | ||||
Packaging & Delivery
Packaging Details: Cartons(1pic/ctn) 220*210*200mm in seaworthy cartons or customized.
Delivery Time 20 days
Product Description
