Fan Features
* The blower bady is inlayed with 50mm insulating rockwool good for lowering noise preventing fire
* Fire Proof PBT Fan Impeller
* Multi-phase EC (Electronically Commutated) Fan Motor
* Exceptional Air Volume Output
* Double Impeller & Jet Engine Design Impeller
* Half the Power Consumption of Other Fans
* Fully Adjustable Speed Controller
* Heavy Duty Ball Bearing
* Over Current Load Protection,Auto-Restart
* Working Temperature:-10ºC-60ºC
* Insulation Type:UL-Class A(105ºC)
* IP Rating:IPX4
* Fire Proof Grade:UL94V-0
* E-mail: linda@nussun.com sales@nussun.com
)
Silent Mixed-Flow Fan – High-Efficiency, Low-Noise Ventilation Solution
Looking for a powerful yet quiet ventilation fan? Our Silent Mixed-Flow Fan combines advanced mixed-flow technology with sound-dampening design to deliver exceptional airflow while minimizing noise. Ideal for residential, commercial, and industrial spaces, this fan provides efficient air circulation, energy savings, and reliable performance. With a durable, compact design, easy installation, and versatile mounting options, it’s perfect for HVAC systems, grow rooms, hydroponics systems, residence, commercial buildings, hotels, workshops, and more. Upgrade your ventilation system with a silent, high-efficiency mixed-flow fan today!
Quick Details
| Model NO. | NE-A200J |
| Brand | Nussun |
| Feature | Low Noise, Large Air Volume, Easy Installation |
| Duct Size | 8inch / 200mm |
| Voltage | 110V/220V |
| Power | 75W/70W |
| Airflow | 639CFM/1078CMH |
| Static Pressure | 469Pa/47.79mmH2O |
| Speed | 3800r.p.m |
| Current | 1.05A/0.52A |
| Noise | 58.3 dB |
| Inpeller | Mixed Flow Impeller |
| Fan Motor | EC Motor |
| Speed Controller | 0%-100%, Wired/Wireless (Not Included in Package) |
Packaging & Delivery
Packaging Details Cartons(1pic/ctn) in seaworthy cartons or customized.
Sample Customization 8 Inch Super Quiet Silent Inline Duct EC Ventilation Fan Blower
Delivery Time 20 days
200mm 8 Inch Mixed Flow EC Silent Duct Fan with Muffler

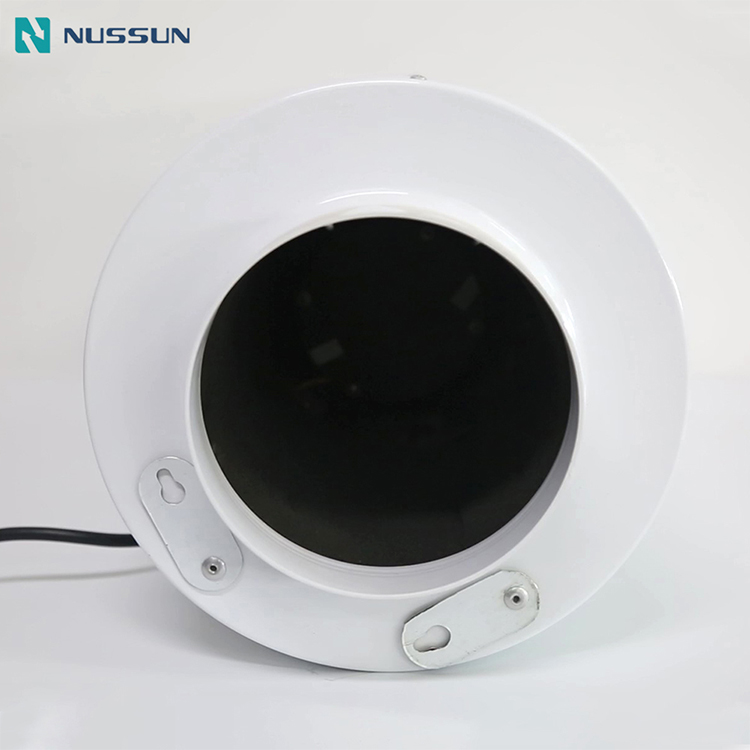

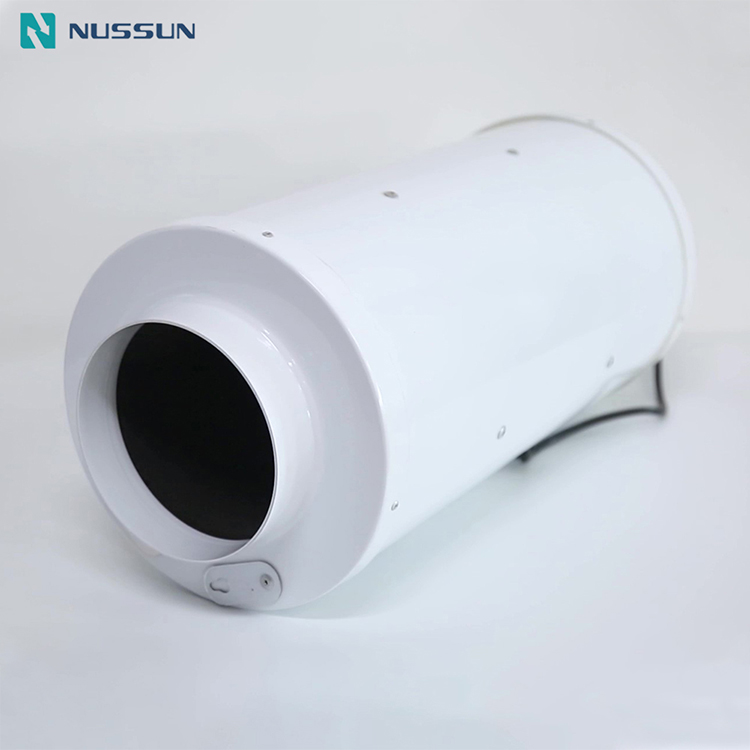

Product Photos:

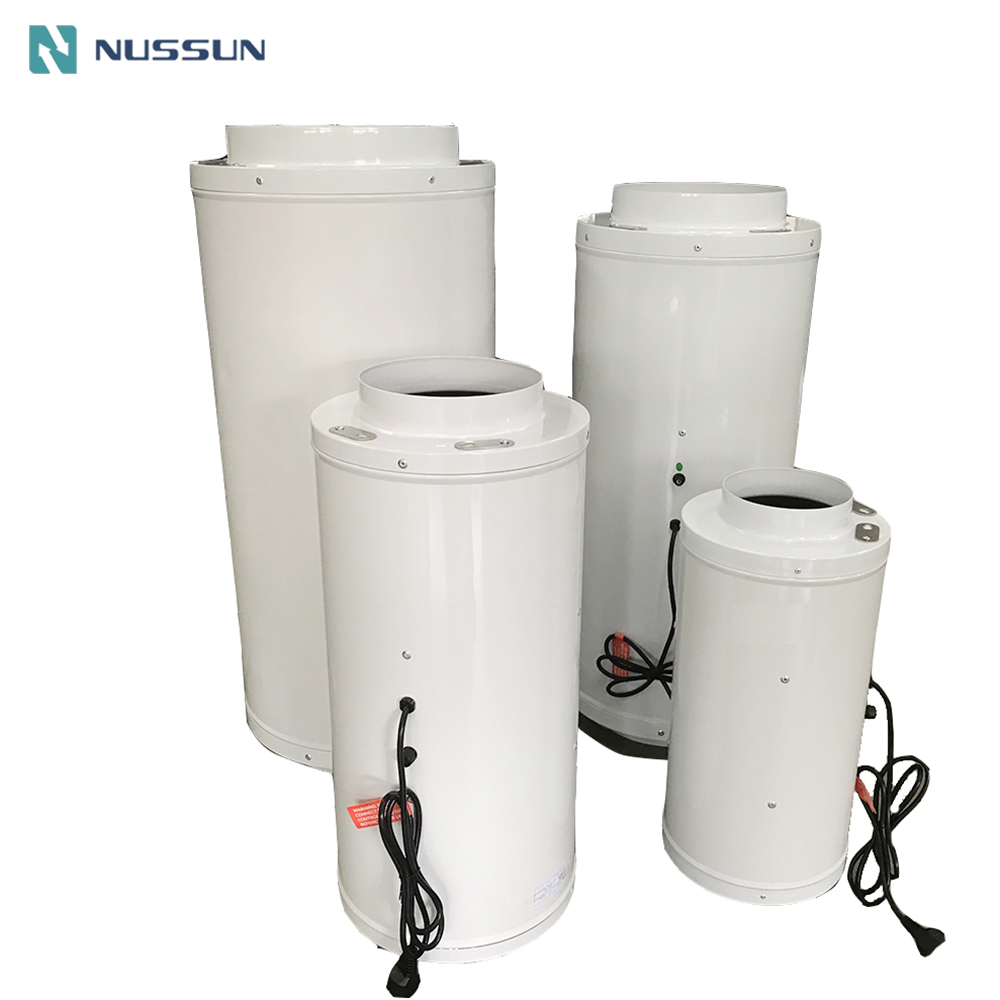

Series EC Motor Mixed Flow Fan with Sliencer
