You are here: Home > Brands Products > NUSSUN EC Fan Motor Super Silent 6inch 8inch 10inch in Line Duct Ventilation Fan with Silencer
NUSSUN EC Fan Motor Super Silent 6inch 8inch 10inch in Line Duct Ventilation Fan with Silencer
Fan Features
* Suitable for places with low-noise requirements
* The blower bady is inlayed with 50mm insulating rockwool good for lowering noise preventing fire
* Fire Proof PBT Fan Impeller
* Multi-phase EC (Electronically Commutated) Fan Motor
* Exceptional Air Volume Output
* Double Impeller & Jet Engine Design Impeller
* Half the Power Consumption of Other Fans
* Fully Adjustable Speed Controller
* Over Current Load Protection,Auto-Restart
* Working Temperature:-10ºC-60ºC
* Insulation Type:UL-Class A(105ºC)
* IP Rating:IPX4
* Fire Proof Grade:UL94V-0
* The blower bady is inlayed with 50mm insulating rockwool good for lowering noise preventing fire
* Fire Proof PBT Fan Impeller
* Multi-phase EC (Electronically Commutated) Fan Motor
* Exceptional Air Volume Output
* Double Impeller & Jet Engine Design Impeller
* Half the Power Consumption of Other Fans
* Fully Adjustable Speed Controller
* Over Current Load Protection,Auto-Restart
* Working Temperature:-10ºC-60ºC
* Insulation Type:UL-Class A(105ºC)
* IP Rating:IPX4
* Fire Proof Grade:UL94V-0
E-mail: linda@nussun.com sales@nussun.com
Product Details
| Model NO. | NE-A150J |
| Brand | Nussun |
| Feature | Low Noise, Large Air Volume, Easy Installation |
| Duct Size | 6inch / 150mm |
| Voltage | 110V/220V |
| Power | 40W/40W |
| Airflow | 315cfm/531CMH |
| Static Pressure | 426PA/Mmh2o |
| Speed | 5000r.p.m |
| Current | 0.52A/0.3A |
| Noise | 58 dB |
| Inpeller | Mixed Flow |
| Fan Motor | EC Motor |
| Speed Controller | 0%-100%, Wired/Wireless (Not Included in Package) |
Packaging & Delivery
Packaging Details Cartons(1pic/ctn) in seaworthy cartons or customized.
Sample Customization 6 Inch Super Quiet Silent Inline Duct Exhaust Ventilation Fan Blower
Delivery Time 20 days
Air Duct Fan 6 Inch Hydroponic Wind Machine Ventilation Fan

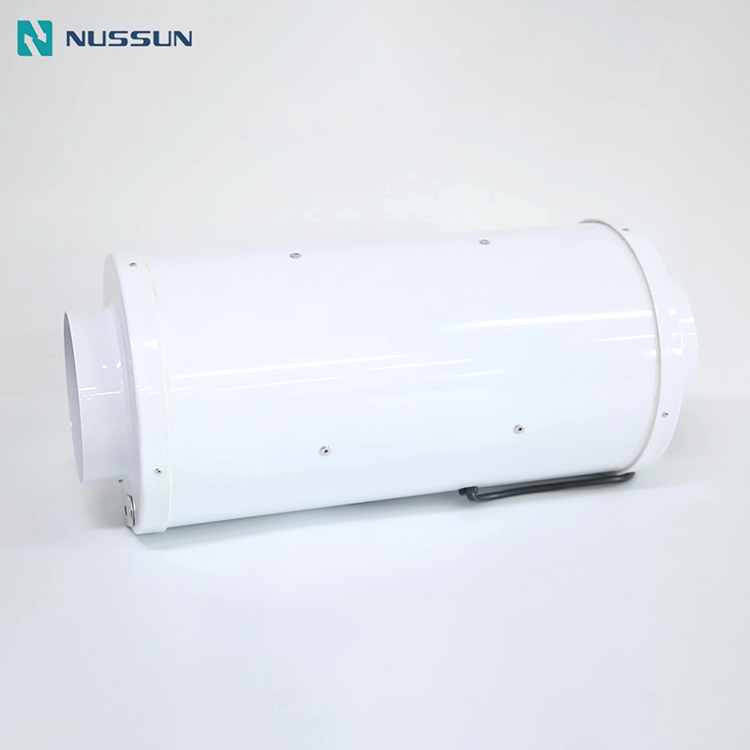

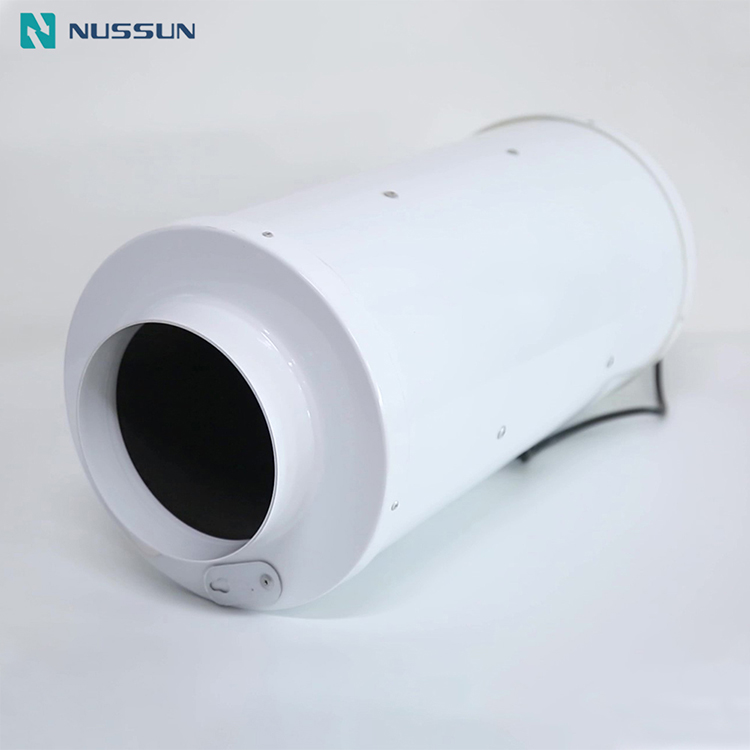

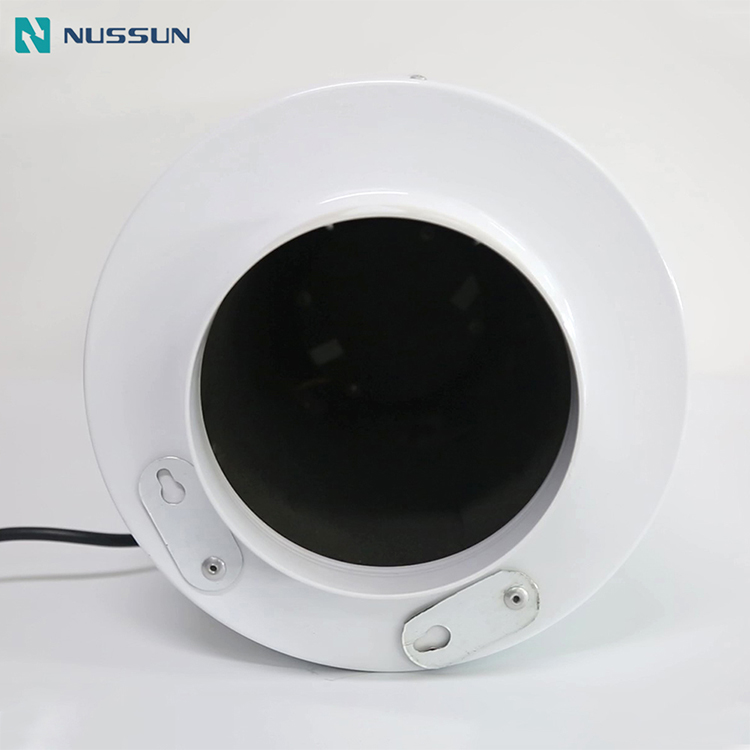

Product Photos:
Series EC Motor Mixed Flow Fan with Sliencer
