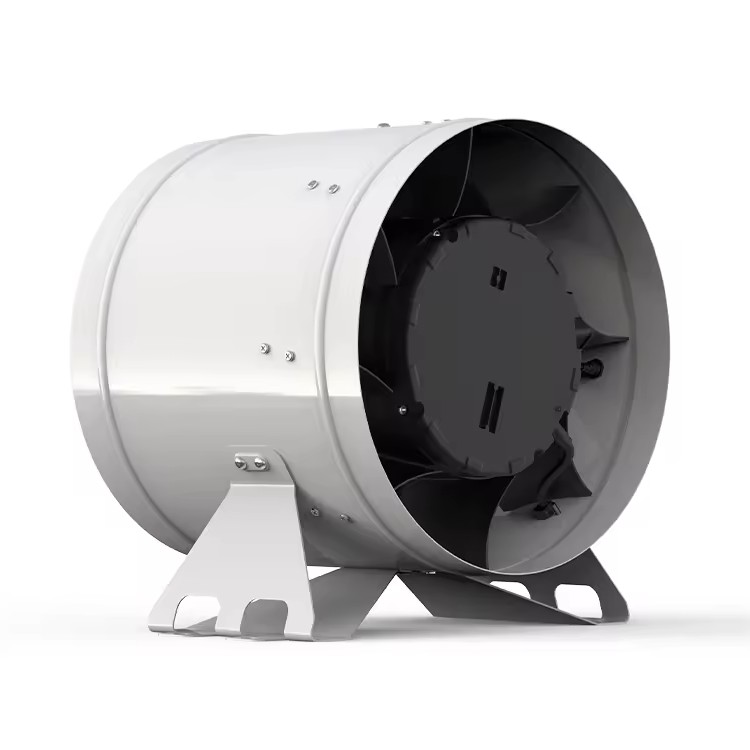

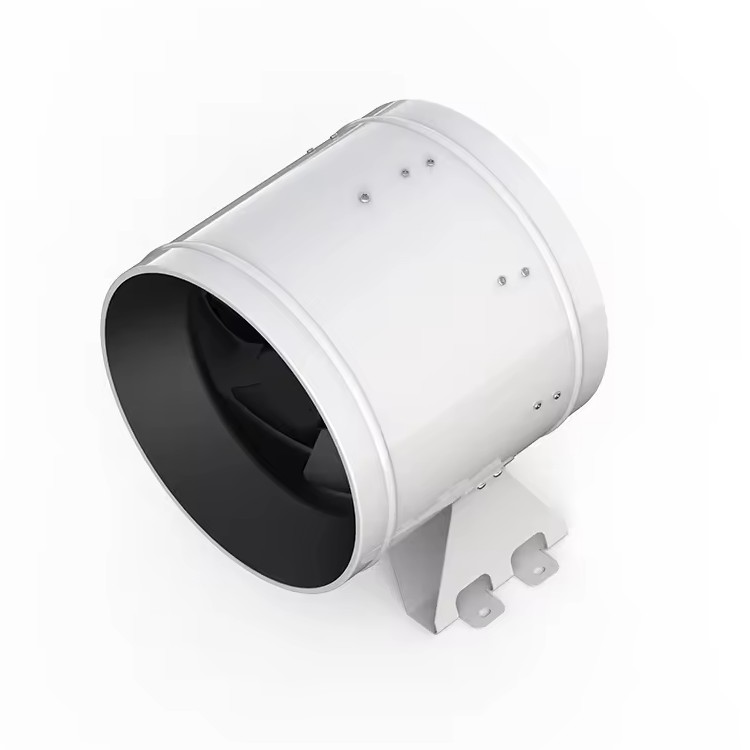

Nussun Fans Manufacturer EC Motor Metal 12 Inch 315mm Mixed Flow Inline Duct Fan For Home



Product Features

• Fan size 12 inch, 315mm

• Metal fan housing

• Fire proof PBT fan impeller

• EC fan motor

• Exceptional air volume output

• Double impeller & jet engine design impeller

• Half the power consumption of other duct fans

• Compatible with various speed controllers

• Over current load protection, auto-restart

• Working temperature: -20℃~60℃

• IP rating: IP65


E-mail: linda@nussun.com    sales@nussun.com

Quick Details

Model
NE-A315Z
Fan Size
315mm
Net Weight
8.5kg
Rated Voltage
220~240V
Max.Power
320W
Frequency
50/60Hz
Max.Speed
3000RPM
Max.Airflow
1757CFM/2987CMH
Max.Static Pressure
677Pa
Max.Noise Level
0~72dBA
IP Rating
IP65
Housing
Steel
Motor Type
EC motor
Working Enviroment
-20℃~60℃, 35%~85%RH

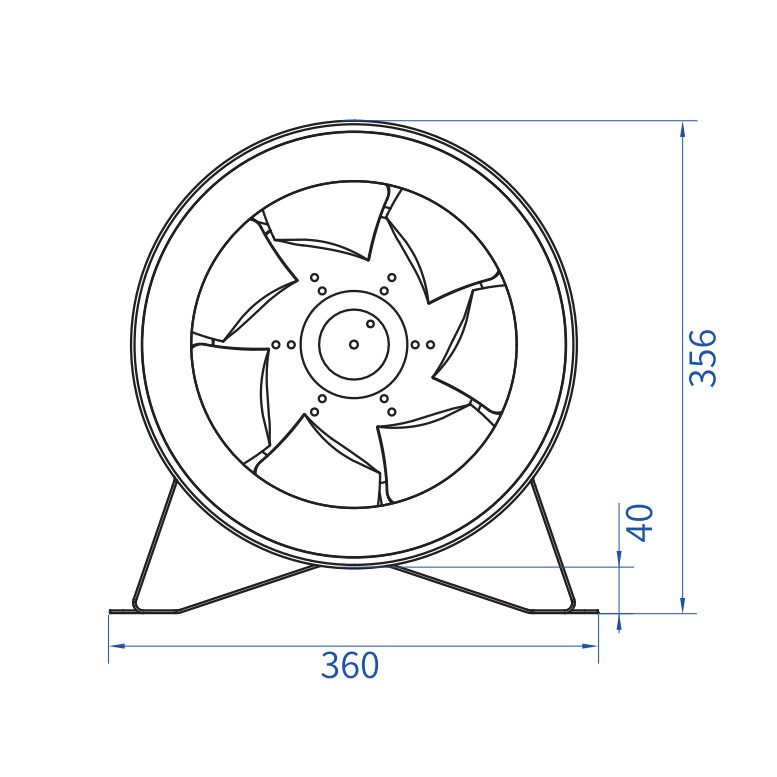

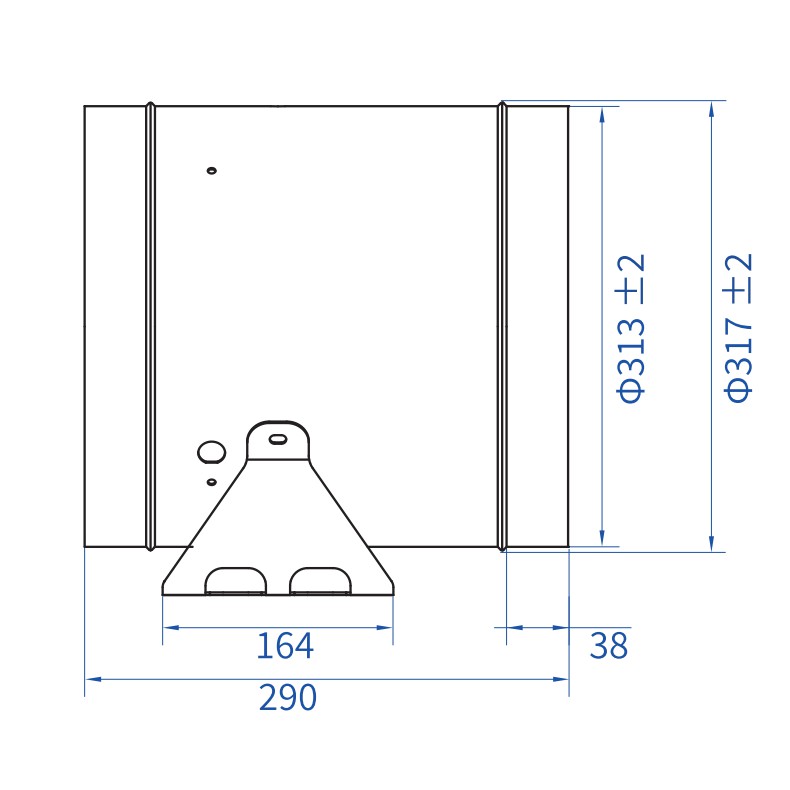

Product Dimension - Model NE-A315Z


Product Description


Nussun Fans Manufacturer EC Motor Metal 12 Inch 315mm Mixed Flow Inline Duct Fan For Home
