• Fan size 5 inch, 125mm
• High strength PP environmentally friendly material housing
• EC fan motor
• Speed 5000RPM
• Airflow 160CFM/275CMH
• Compatible with various speed controllers
• Over current load protection, auto-restart
• Working temperature: -20℃~60℃, 35%~85%RH
• IP rating: IP68
E-mail: linda@nussun.com sales@nussun.com

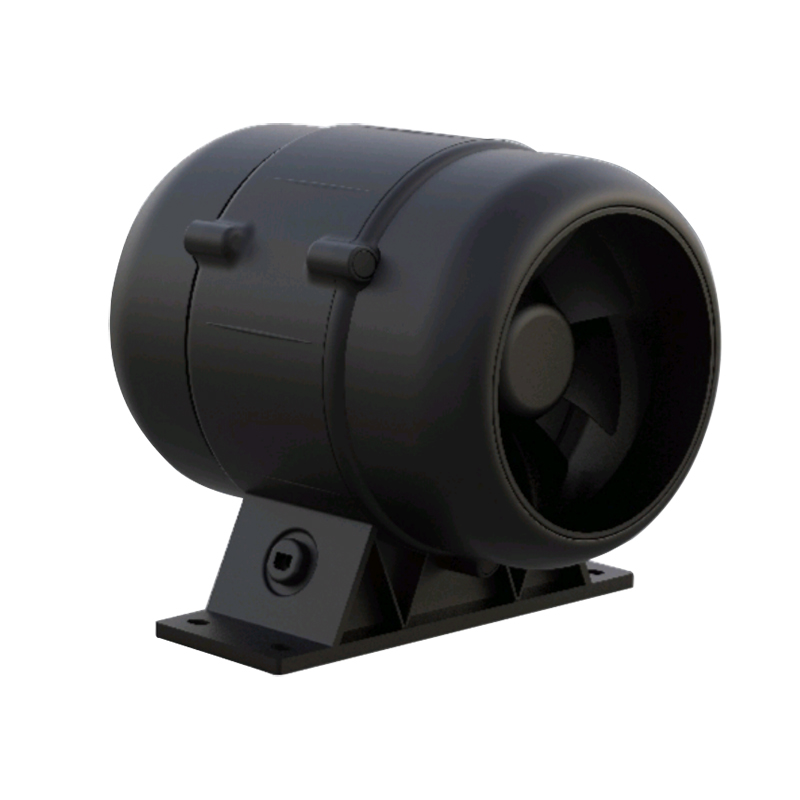

NUSSUN High Strength Plastic Housing HAVC 220V 5" Silent EC Motor Mixed Flow Exhaust Inline Duct Fan
Product Feature:
·The design of fan blades is derived from the turbocharging structure of aircraft engines, which outputs stronger wind pressure and greater air volume based on aerodynamic principles.
·PP environmentally friendly material shell, high strength and durability; Detachable air guide cover, convenient for installation in narrow spaces; Suitable for more environments that require ventilation and air exchange.
·This product adopts cutting-edge DC variable frequency motor technology, a brushless high-efficiency motor with variable frequency, consumes only half of the power of ordinary AC motors, and operates more smoothly with double ball bearings.
·Intelligent enhanced current stabilization technology, supporting constant speed, overvoltage and overcurrent protection, lock protection, and soft start.
·The fan can provide 10VDC/300mA external power supply and support customized PWM/0-10V voltage speed regulation/temperature control/square wave output/485 signal.
·Supports multiple types of speed controllers: temperature and humidity controllers, intelligent temperature controllers, wireless remote controllers, 86 box speed controllers, digital controllers, and small black box infinite speed controllers.
