You are here: Home > Brands Products > Nussun Mixed-Flow Fan Silent Duct Fan Mixed Low Noise Sound Reduce 10 Inch EC Motor Fan with Muffler
Nussun Mixed-Flow Fan Silent Duct Fan Mixed Low Noise Sound Reduce 10 Inch EC Motor Fan with Muffler
Fan Features
* Suitable for places with low-noise requirements
* Fire Proof PBT Fan Impeller
* Multi-phase EC (Electronically Commutated) Fan Motor* Exceptional Air Volume Output
* Double Impeller & Jet Engine Design Impeller
* Half the Power Consumption of Other Fans
* Fully Adjustable Speed Controller
* Heavy Duty Ball Bearing
* Over Current Load Protection,Auto-Restart
* Working Temperature:-20ºC-60ºC
* Insulation Type:UL-Class A(105ºC)
* IP Rating:IPX4
* Fire Proof Grade:UL94V-0
* E-mail: linda@nussun.com sales@nussun.com
Quick Details
| Model NO. | NE-A250J |
| Brand | Nussun |
| Feature | Low Noise, Large Air Volume, Easy Installation |
| Duct Size | 10inch / 250mm |
| Voltage | 110V/220V |
| Power | 135W/142W |
| Airflow | 959CFM/1617CMH |
| Static Pressure | 461Pa/47mmH2O |
| Speed | 3200r.p.m |
| Current | 1.8A/1.05A |
| Noise | 63.7 dB |
| Inpeller | Mixed Flow Impeller |
| Fan Motor | EC Motor |
| Speed Controller | 0%-100%, Wired/Wireless (Not Included in Package) |
Packaging & Delivery
Packaging Details Cartons(1pic/ctn) in seaworthy cartons or customized.
Sample Customization 8 Inch Super Quiet Silent Inline Duct EC Ventilation Fan Blower
Delivery Time 20 days
250mm 10 Inch Mixed Flow EC Silent Duct Fan with Muffler

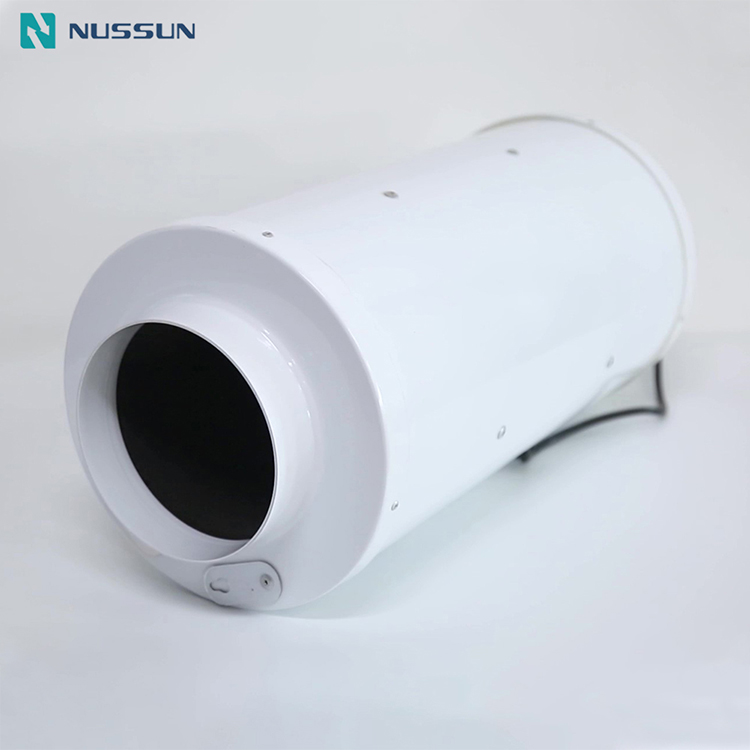

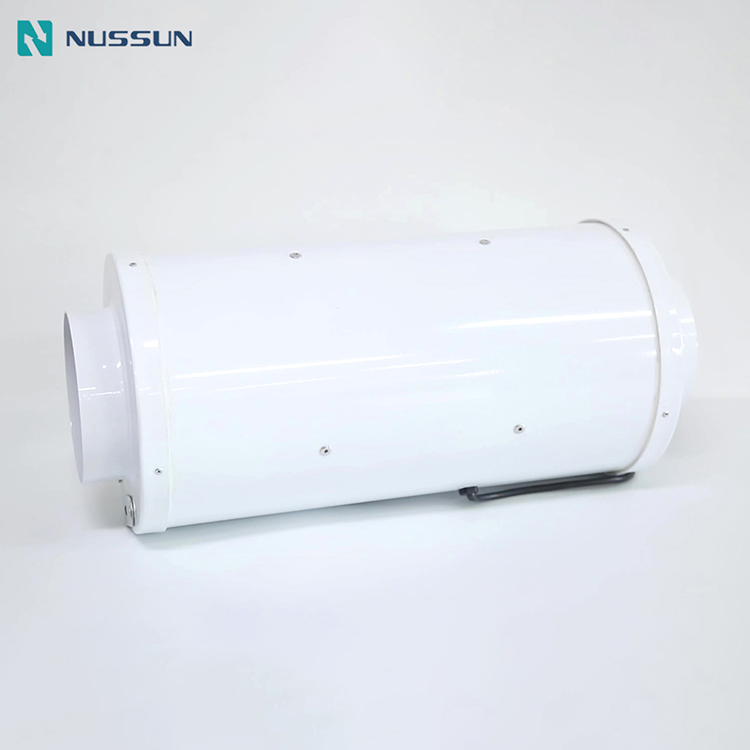

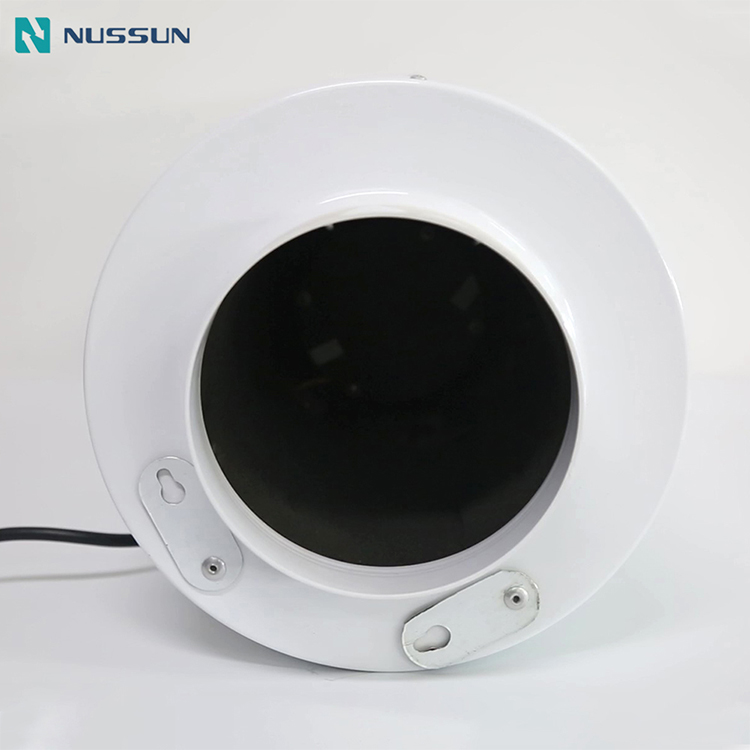

Product Photos:
Series EC Motor Mixed Flow Fan with Sliencer
