NUSSUN Quiet Mixed Flow EC Fan Motor Inline Fan Low Working Noise Muffler Inline Fan Silencer
Fan Features
* Suitable for places with low-noise requirements
* Fire Proof PBT Fan Impeller
* Multi-phase EC (Electronically Commutated) Fan Motor
* Exceptional Air Volume Output
* Double Impeller & Jet Engine Design Impeller
* Half the Power Consumption of Other Fans
* Fully Adjustable Speed Controller
* Heavy Duty Ball Bearing
* Over Current Load Protection,Auto-Restart
* Working Temperature:-20ºC-60ºC
* Insulation Type:UL-Class A(105ºC)
* IP Rating:IPX4
* Fire Proof Grade:UL94V-0
* Fire Proof PBT Fan Impeller
* Multi-phase EC (Electronically Commutated) Fan Motor
* Exceptional Air Volume Output
* Double Impeller & Jet Engine Design Impeller
* Half the Power Consumption of Other Fans
* Fully Adjustable Speed Controller
* Heavy Duty Ball Bearing
* Over Current Load Protection,Auto-Restart
* Working Temperature:-20ºC-60ºC
* Insulation Type:UL-Class A(105ºC)
* IP Rating:IPX4
* Fire Proof Grade:UL94V-0
* E-mail: linda@nussun.com sales@nussun.com
Quick Details
| Model NO. | NE-A200J |
| Brand | Nussun |
| Feature | Low Noise, Large Air Volume, Easy Installation |
| Duct Size | 8inch / 200mm |
| Voltage | 110V/220V |
| Power | 75W/70W |
| Airflow | 639CFM/1078CMH |
| Static Pressure | 469Pa/47.79mmH2O |
| Speed | 3800r.p.m |
| Current | 1.05A/0.52A |
| Noise | 58.3 dB |
| Inpeller | Mixed Flow Impeller |
| Fan Motor | EC Motor |
| Speed Controller | 0%-100%, Wired/Wireless (Not Included in Package) |
Packaging & Delivery
Packaging Details Cartons(1pic/ctn) in seaworthy cartons or customized.
Sample Customization 8 Inch Super Quiet Silent Inline Duct EC Ventilation Fan Blower
Delivery Time 20 days
200mm 8 Inch Mixed Flow EC Silent Duct Fan with Muffler

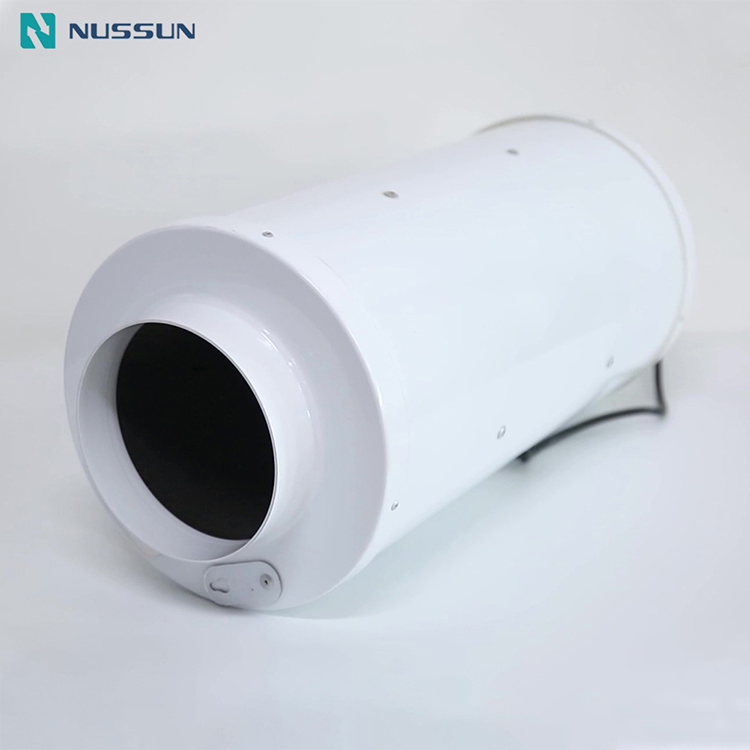

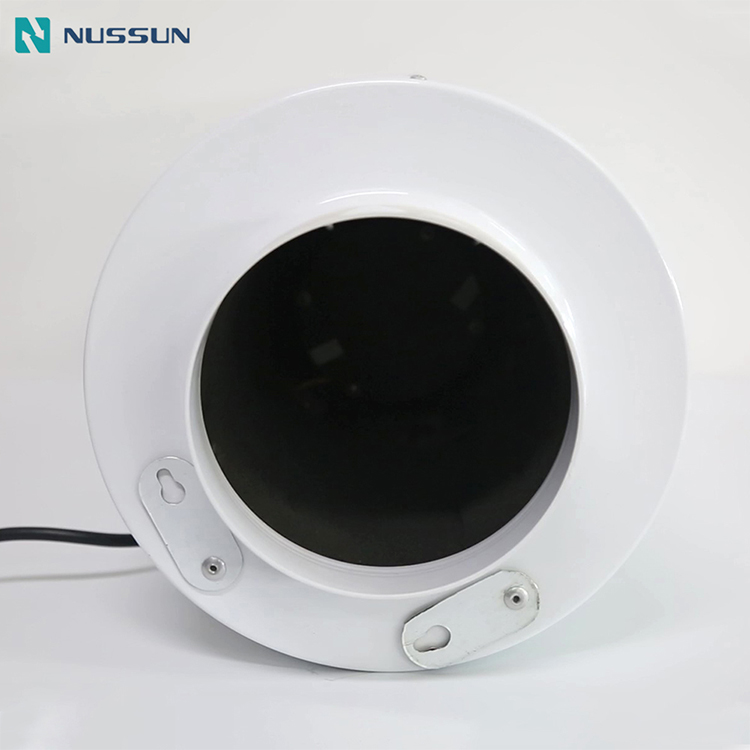

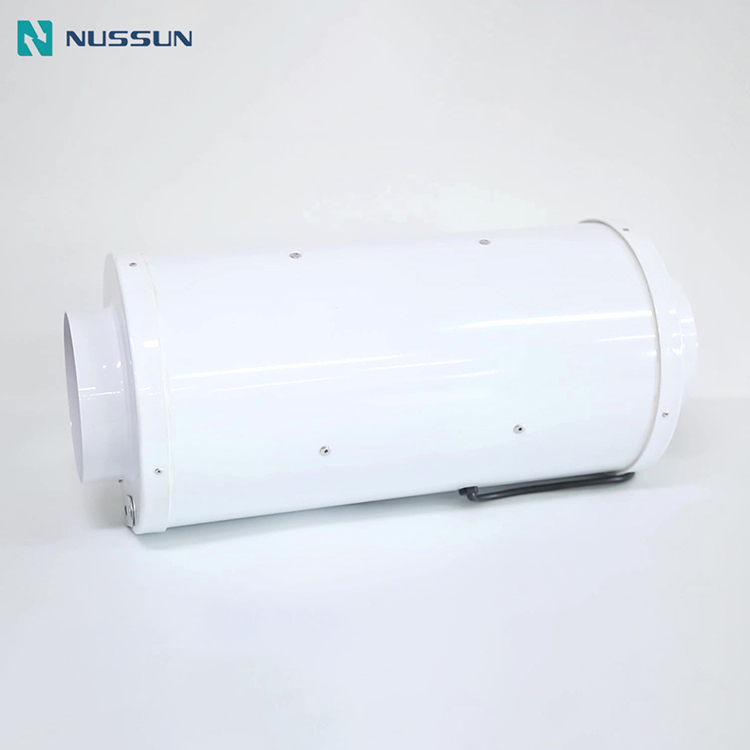

Product Photos:
Series EC Motor Mixed Flow Fan with Sliencer
