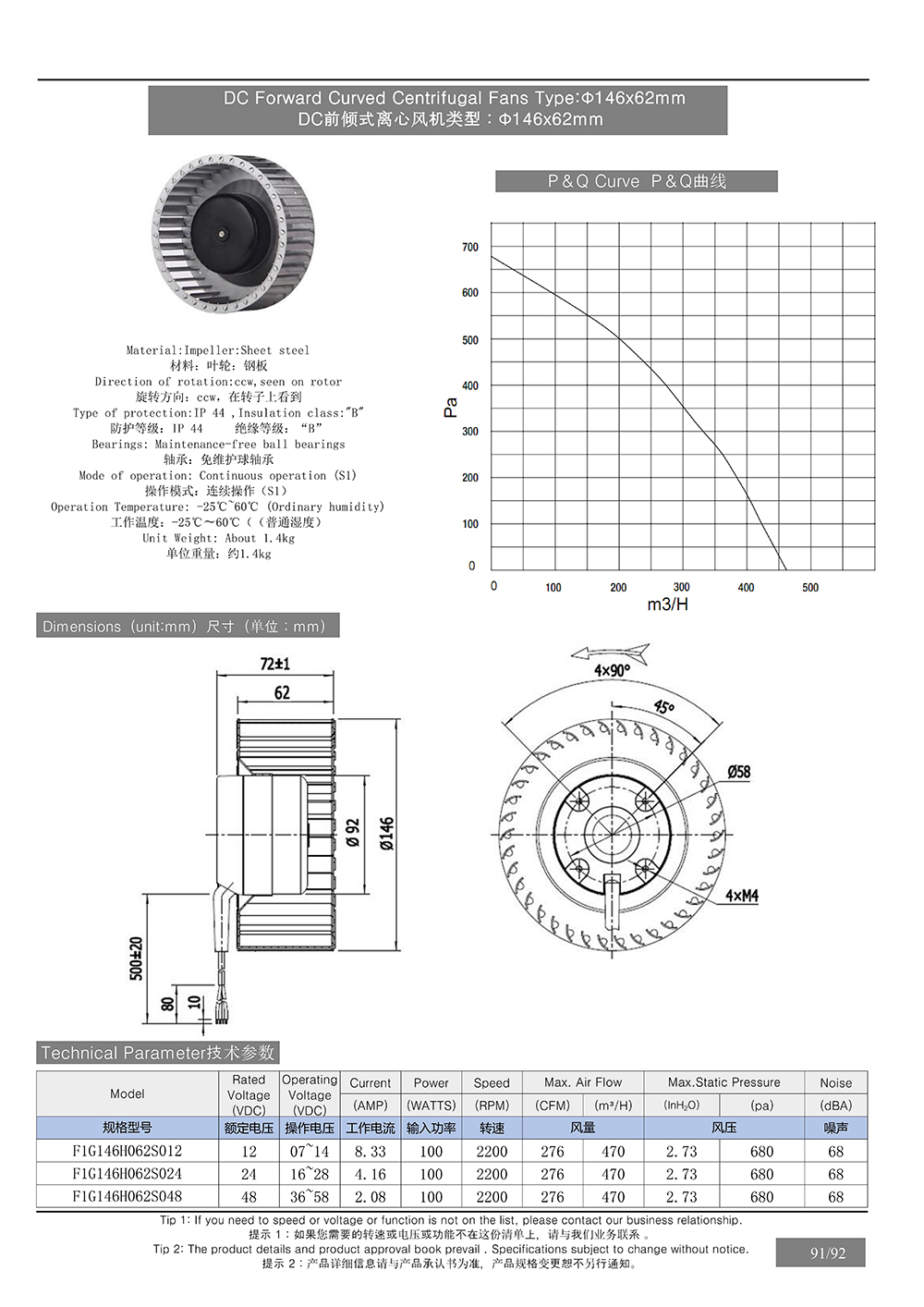

DC Forward Curved Centrifugal Fans
Model: F1G146H062S012
F1G146H062S024
F1G146H062S048

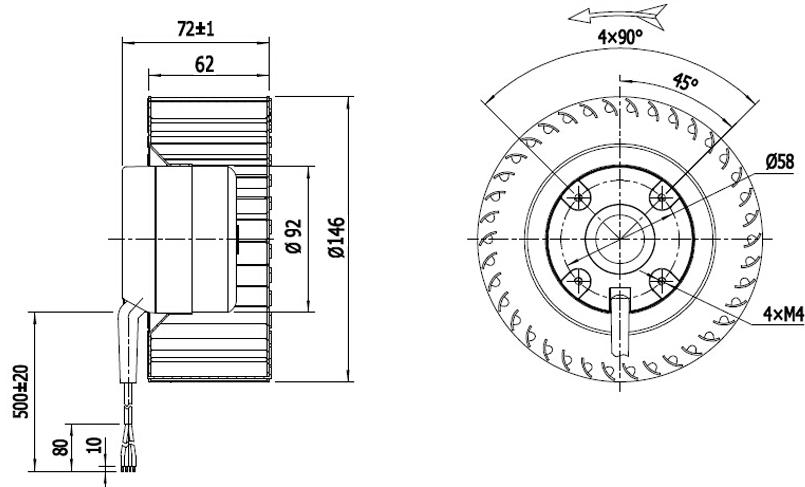

Type: Φ146mm×62mm
Max Airflow: 276CFM, 470CMH
E-mail: linda@nussun.com sales@nussun.com
Nussun centrifugal fans, Less noise, higher performance
Nussun centrifugal fans are available with forward and backward-curved blades. The quiet-running centrifugal fans with forward-curved blades are also supplied with a scroll housing. The centrifugal fans with backward-curved blades are designed as freewheel fans and do not require a scroll housing. In the case of centrifugal fans with external rotor motors, the motor is positioned in the impeller, ensuring not just optimum cooling of the motor, but also a particularly compact design. The entire range is available with both AC and EC technology. In addition to being particularly energy-saving, the integrated electronics also make it possible to implement any control, monitoring and maintenance functions – for both the smart home and Industry.
The advantages of centrifugal fans from Nussun:
• AC, EC and DC centrifugal fans with forward-curved blades
• EC centrifugal fans with backward-curved blades
• EC system solution in scroll housing
• EC medium-pressure fans
• Compact design thanks to external rotor motor technology
• Comprehensive product ranges for every application
• High efficiency through the use of EC technology
• Quiet operation thanks to optimized flow control and sophisticated EC motor commutation
• Start-up made easy by perfectly coordinated components: Control system/motor/fan
• Extensive accessories
