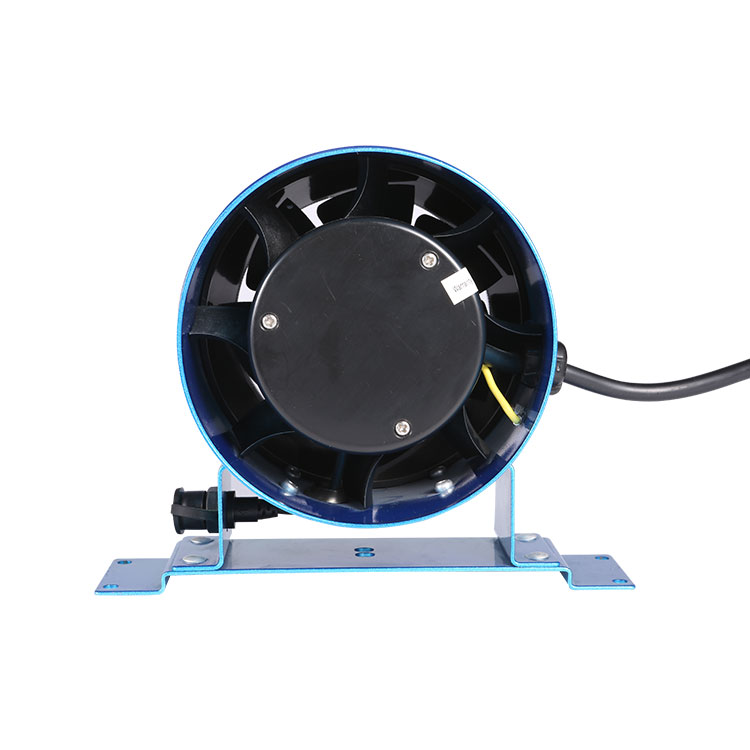

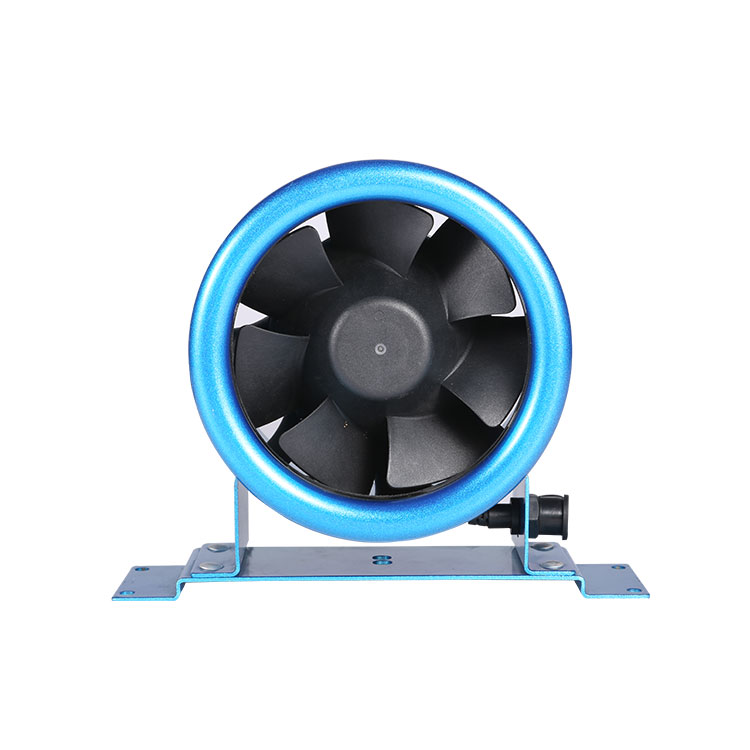

Sample Customization High Performance Greenhouse Hydroponic Growing EC Inline Duct Fan

 FAN FEATURES

  • Most compact design with metal housing

  • Fire Proof PBT Fan Impeller

  • Multi-phase EC(Electronically Commutated)Fan Motor

  • Exceptional Air Volume Output

  • Double Impeller & Jet Engine Design Impeller

  • Half the Power Consumption of Other Fans

  • Fully Adjustable Speed Controller

  • Heavy Duty Ball Bearing

  • Over Current Load ProtectionAuto-Restart

  • Working Temperature:-10℃-60

  • Insulation Type:UL-Class A(105℃)

  • IP Rating:IPX4

  • Fire Proof Grade:UL94V

E-mail: linda@nussun.com    sales@nussun.com



Quick Details

Model Number:NE-A125Brand Name:NussunBlade Material: Fire Proof PBT Fan Impeller
Place of Origin: Guangdong, China (Mainland)Mounting:Duct Fan

Max.Operating Current:

0.2A

Voltage:110-240VACPower: 20WOperating Voltage:100-240VAC
Max Speed: 5000RPMCertification:CCC, CEAfter-sales Service :Engineers available to service
Color:White and any other colorMotor:EC motorImpeller:
Mixed Flow impeller

Max.Static Perssure:

22mmH2O/215PaBall Bearing: NSK ball bearingDimension:Packing: 215*210*210mm
Noise Range:0dBA-55dBA adjustableCasing: Color coated metalSpeed controller:0%-100%,Wired/Wireless, not included
Electric Current:AC

IP Rating:

IPX4

Fan Size:5″/125mm
Max.Airflow:

163CFM/277CMH

Frepuency:50/60HzNet Weight:1.1kg
Product name:5 Inch EC Motor Inline Duct Fan 110/240V Multi-Speed Ventilation Fan

Packaging & Delivery

  • Packaging Details: Cartons(1pic/ctn) in seaworthy cartons or customized.

  • Delivery Time 20 days




Product Description

+





Nussun, air exhaust fans and ventilation equipment manufacturer

Factory production Process

HVAC ventilation fans factory workshopNussun, HVAC ventilaiton duct fans manufacturersventilaiton duct fans for home, commercial, farming and industrialCE, UL, ETL, RoHS, CCC certificationventilation fans and HVAC equipments exhibitionsZhongshan Nussun Mechanical & Electrical Technology Co., Ltd.
