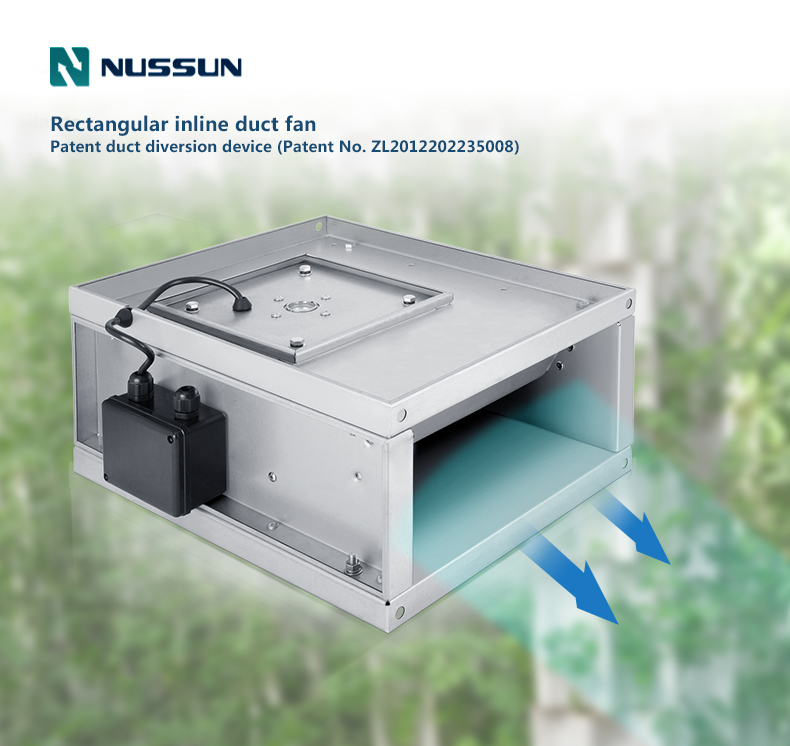

Rectangular Inline Duct Fan (RKF400*200)
Rectangular duct fans are designed for ventilation of medium size and large rooms where space is limited. The rectangular air duct fans are designed to fit within rectangular air ducts. Its primary purpose is to enhance airflow in heating, ventilation, and air conditioning (HVAC) systems.
The rectangular duct fans are applicable in residential, commercial and industrial areas, including among others: bathrooms, toilets, utility rooms, swimming pools, gyms and warehouses, coffee bars, bars, restaurants, shops, schools, offices, factories, pubs, hotels, shopping centres, entertainment centres, workshops and local ventilation.
E-mail: linda@nussun.com sales@nussun.com
)
Wholesale Warehouse rectangular duct fan (RKF400*200)
Rectangular duct fans are intended for ventilation of medium size and large rooms where space is limited. The rectangular air duct fans are designed to fit within rectangular air ducts. Its primary purpose is to enhance airflow in heating, ventilation, and air conditioning (HVAC) systems.
The rectangualr duct fans are applicable in residential, commercial and industrial areas, including among others: bathrooms, toilets, utility rooms, swimming pools, gyms and warehouses, coffee bars, bars, restaurants, shops, schools, offices, factories, pubs, hotels, shopping centres, entertainment centres, workshops and local ventilation.
- Casing
The fan casing are manufactured from heavy gauge galvanized sheet steel. All models incorporate and inspection cover that can be removed to access the motor/impeller assembly without having to remove the complete casing from the ducting.
- Impeller
all models incorporate direct-drive low pressure forward curved centrifugal impellers. The impeller is factory matched to the motor and complete assembly is dynamically balanced 1940 standards.
- Motors
all models incorporate asynchronous induction motors in die cast aluminum. The following specification apply.
single phase 220V 50Hz, three phase 220V/380V 50Hz
IP44 protection
Class F insulation
Remote terminal box
Features
• Installation in suspended ceiling assembling with rectangular duct
• Forward curved or backward curved centrifugal impeller
• ABS (FR) connection box
• Casing made of galvanized steel plate with preset installation hole
• External rotor motor with low temperature rise
• Motor is equipped with automatic reset thermal overload protection
• Heavy-duty ball bearing, acceptable for continuous operation of 50000h
• External rotor motor and impeller is eversible, easy for cleanning and maintenance
• Operating temperature range -20°C~50°C
• Insulation Class F
• Enclosure class IP44

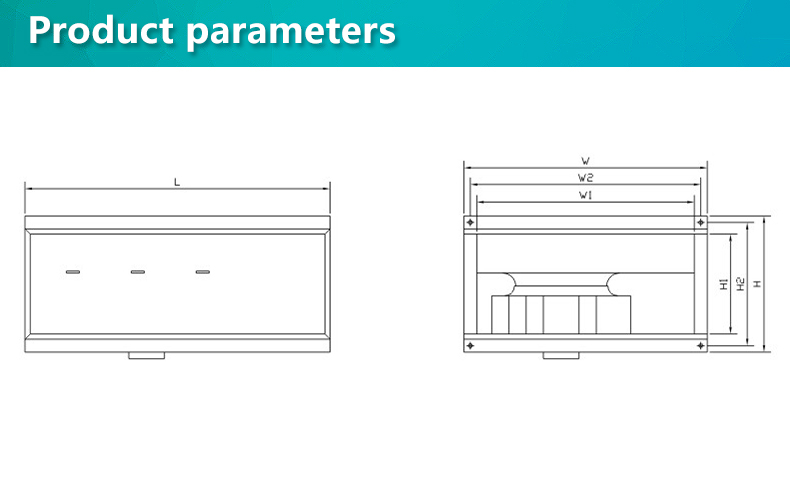

Dimension Table (mm)

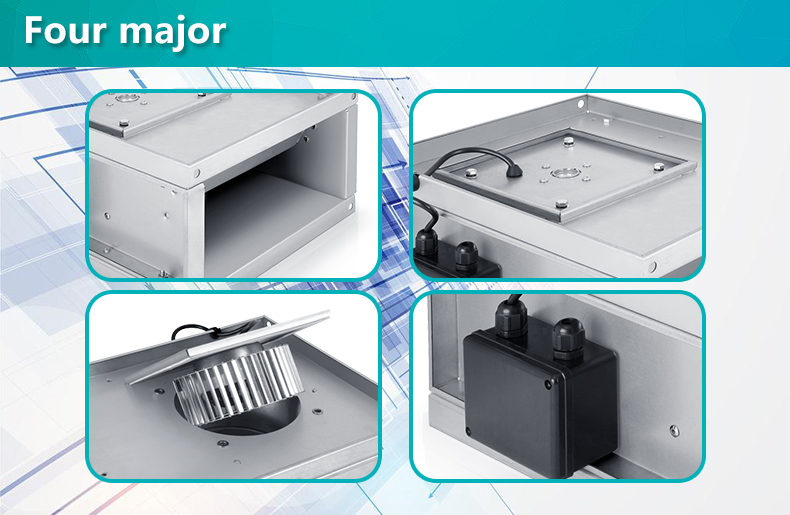

Feature parts details
Create a comfortable and quiet environment
